Dormer Pramet A1228.0X90 (MID 5968664) stub length spotting drill, 8.00mm (0.315") cutting diameter, 90° point angle, High Speed Steel (HSS), DIN 1897. h8 tolerance class. Suitable for steel and non-ferrous materials.

Name: Dormer Pramet A1228.0X90 (MID 5968664) stub length spotting drill, 8.00mm (0.315") cutting diameter, 90° point angle, High Speed Steel (HSS), DIN 1897
Brand: Dormer Pramet
Price: 29.61 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5968664

BRAND

Dormer Pramet

SKU

6071283

WEIGHT

0.057 lb

UOM

each

This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.

$29.61 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity(10 minimum)

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Spotting 90°/120°

Basic Standard

DIN 1897

Coating

Bright

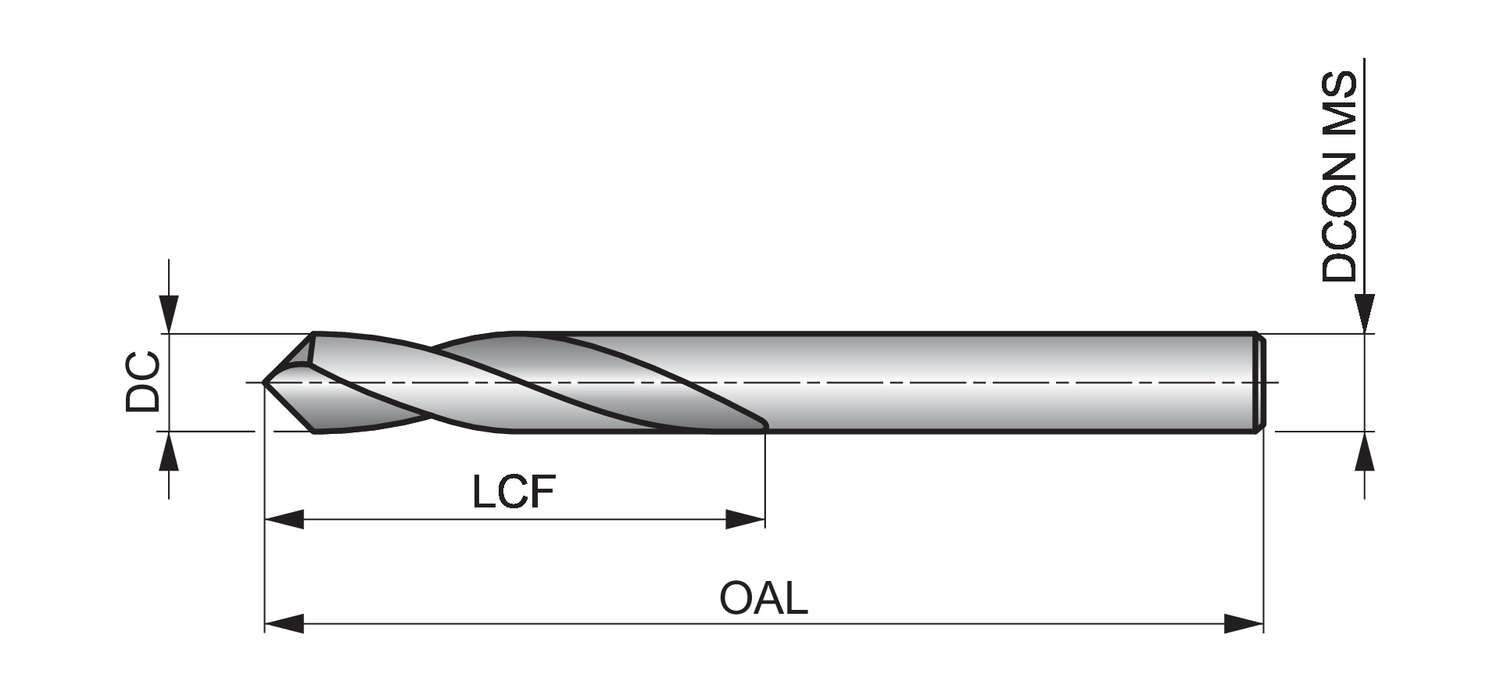

Connection diameter - millimeter (DCON MS)

Cutting diameter - millimeter (DC)

Cutting Diameter Inch Decimal

0.315

Cutting diameter tolerance class (TCDC)

EDP number

19269

Hand (Cutting direction)

Right

Length chip flute - inch (LCF)

1.2992

Length chip flute - millimeter (LCF)

Material

HSS

Material application

N - Non-ferrous metals, P - Steel and cast steel

MID number

5968664

Ordering code ANSI

A1228.0X90

Overall length - inch (OAL)

3.1102

Overall length - millimeter (OAL)

Point Angle (SIG)

Shank

Cylindrical shank

Spiral form

Standard Spiral

Usable length (ULDR)

The A122 is a metric spotting drill so you would use it to start a hole in the material to be drilled to ensure the start point is accurate.

You may also use it to provide a countersink start to the hole by choosing a larger diameter than the hole you need and just drilling down to the countersink depth with this drill and completing the hole with a smaller diameter drill.

The A122 drill comes with either a 90 degree or 120 degree point angle, giving you two options of countersink.

Manufactured from High Speed steel, the A122 is suitable for drilling in many materials including steel, stainless steels and aluminium.

The drill comes with a steam oxide finish to stop workpiece material from sticking to the cutting edge of the drill, giving you a better hole finish and more accurate diameter
