Dormer A13013.5 5969116 Taper Shank Drill 13.50 mm
MODEL 5969116
$50.13 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
DIN 345
Coating
Steam Tempered

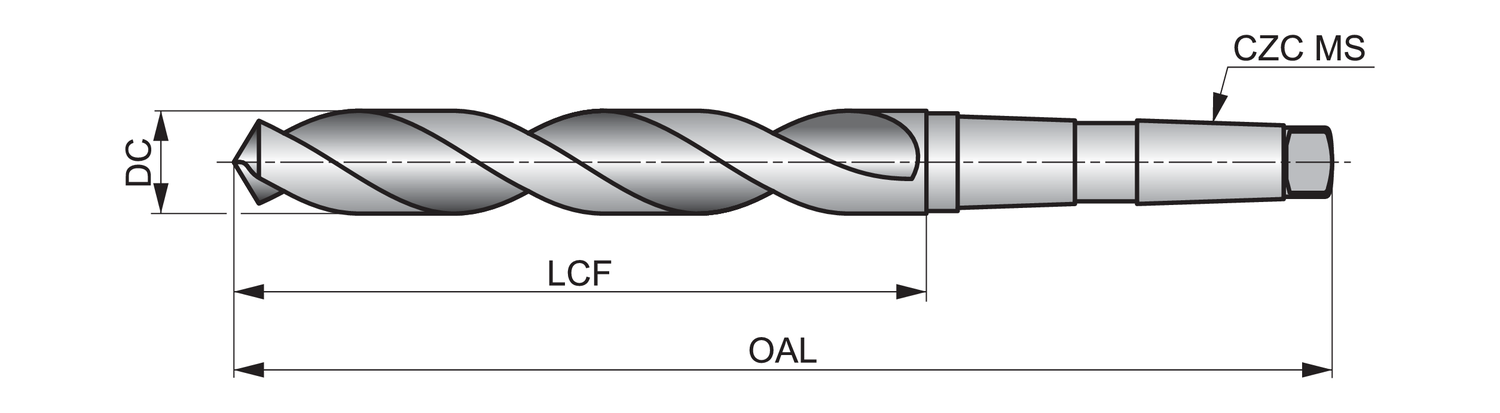

Connection size code machine side (CZC MS)
MK 1
Cutting diameter - inch (DC)
0.5315
Cutting diameter - millimeter (DC)
13.5
Cutting diameter tolerance class (TCDC)
h8
EDP number
22528
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
4.252
Length chip flute - millimeter (LCF)
108
Material application
K - Cast iron, P - Steel and cast steel
Material code (BMC)
HSS
MID number
5969116
Ordering code ANSI
A13013.5
Overall length - inch (OAL)
7.4409
Overall length - millimeter (OAL)
189
Point Angle (SIG)
118
Shank
Morse Taper Shank
Spiral form
Standard Spiral
Usable length (ULDR)
4
The A130 has a tapered shank to provide a better grip when holding the drill in the machine.
It comes in a very wide range of diameters in both fractional and metric sizes and includes larger size diameters – up to 3 inches and 100.00 mm.
It has a conventional 118 degree point providing strength and making it easy to regrind.
All A130 drills come with the patented Dormer Silver Ring which gives you the reassurance it is a genuine Dormer drill.
The diameter of the drill is also etched onto the silver ring which makes it easy to find.
The A130 has a steam oxide finish to prevent workpiece material from sticking to the cutting edge and is made from premium High Speed steel, suitable for drilling many materials including steels, aluminium and stainless steels.
The A130 is a very versatile product and can be used in machine applications where the drill is held directly in the spindle.
*Note - point thinned only above 14.0mm
