Dormer A1476.3 7022450 Jobber Drill DIN 338 6.30 mm
MODEL 7022450
This product has a minimum order quantity of (5 minimum) This is the minimum order quantity available when purchasing this product.
$7.77 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(5 minimum)
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 130°
Basic Standard
DIN 338
Coating
Bright
Connection (shank) description
Cylindrical shank

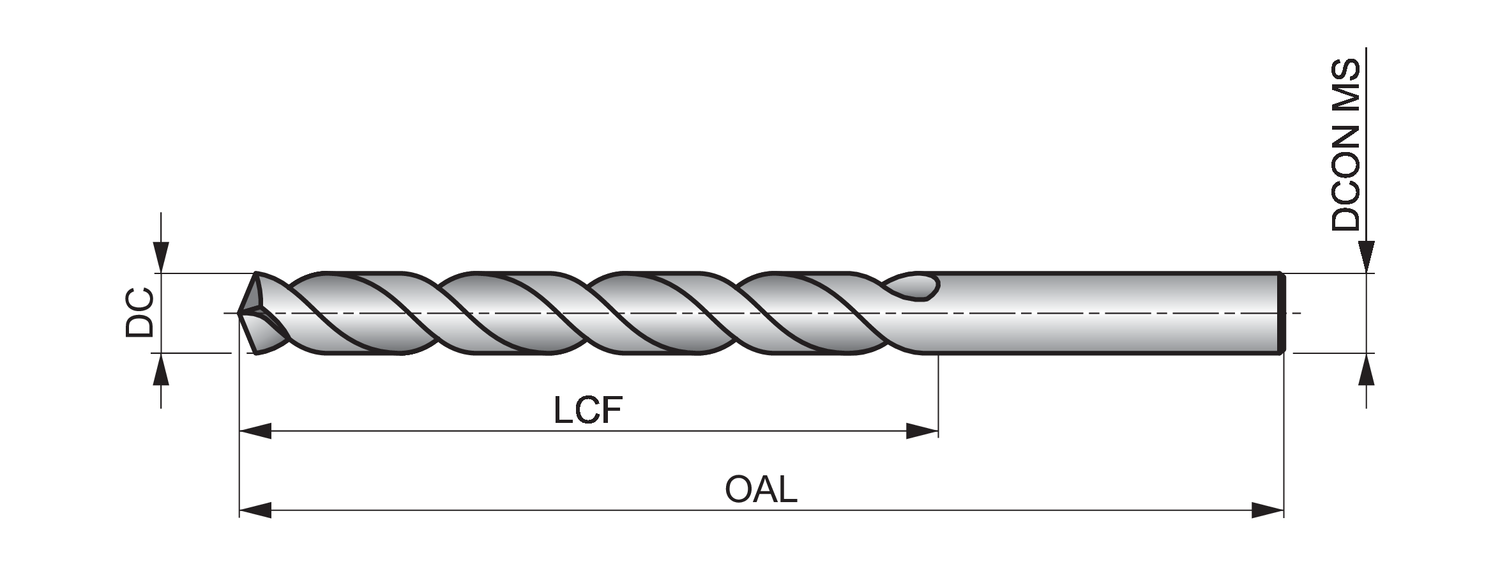

Connection diameter - millimeter (DCON MS)
6.3
Cutting diameter - inch (DC)
0.248
Cutting diameter - millimeter (DC)
6.3
Cutting diameter tolerance class (TCDC)
h8
Drill Length
Jobber
EDP number
47022450
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
2.4803
Length chip flute - millimeter (LCF)
63
Material
HSS-E
Material application
M - Stainless steel, S - High-temperature alloys
MID number
7022450
Ordering code ANSI
A1476.3
Overall length - inch (OAL)
3.9764
Overall length - millimeter (OAL)
101
Point Angle (SIG)
130
Spiral form
VA
Surface treatement
Original surface
Usable length (ULDR)
4
The A147 drill from Dormer Pramet is a very versatile drill, suitable for a number of applications in both machine and hand held drilling.
Effective in a very wide range of materials, the A147 is made from premium high speed cobalt material which makes it particularly suited for drilling stainless steels.
It has a 130 degree split point which helps to self-center the drill and reduces the amount of force needed to drill the hole, whilst the bright finish helps stop work piece material from sticking to the cutting edge of the drill.
The A147 is a great work horse to satisfy your drilling requirements
