Dormer Pramet A17049/64 (MID 5968842) is a 49/64" (19.45mm) jobber length drill with a reduced cylindrical shank. Made from High Speed Steel (HSS) with a Steam Tempered surface treatment, it features a 118° point angle and standard spiral flute geometry. Designed for drilling steel and cast steel (material group P). Overall length 6", flute length 3".
MODEL 5968842
$52.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
DORMER
Coating
Steam Tempered
Connection (shank) description
Reduced Cylindrical shank

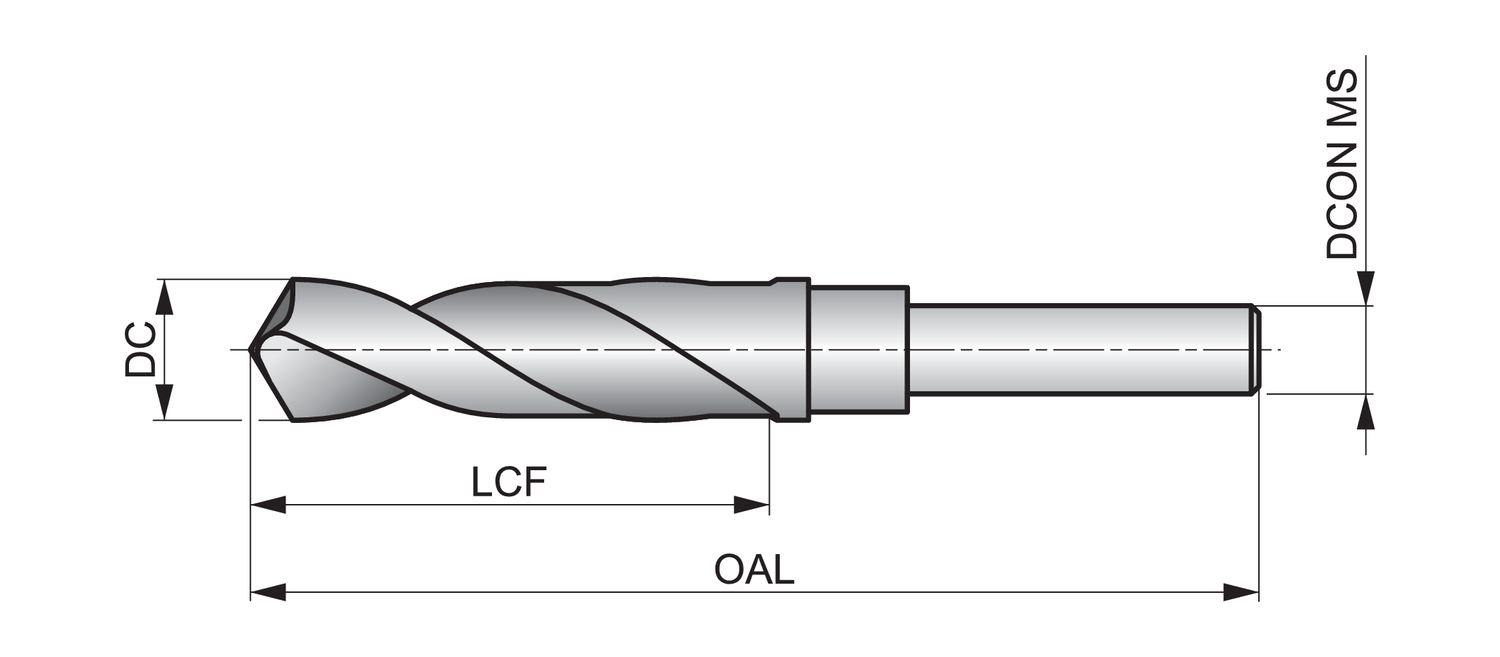

Connection diameter - inch (DCON MS)
0.5
Connection diameter - millimeter (DCON MS)
19.45
Cutting diameter - fractional inch (DC)
49/64"
Cutting diameter - inch (DC)
0.7656
Cutting diameter - millimeter (DC)
19.45
Cutting diameter tolerance class (TCDC)
h8
Drill Length
Jobber
EDP number
121931
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3
Length chip flute - millimeter (LCF)
76.2
Material
HSS
Material application
P - Steel and cast steel
MID number
5968842
Ordering code ANSI
A17049/64
Overall length - fractional inch (OAL)
6"
Overall length - millimeter (OAL)
152.4
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
The A170 drill comes in a range of fractional and metric diameters.
However, regardless of the cutting diameter, all A170 drills come with a ˝ inch parallel shank.
This means drills with a large cutting diameter can still be clamped in conventional, hand held power tools.
The A170 is manufactured from premium High Speed steel making it suitable for drilling many materials, including steels, stainless steels and aluminium and comes with a conventional 118 degree point, providing strength and making regrinding easy.
It has a steam oxide finish to stop work piece material from sticking to the cutting edge of the tool.
The A170 ˝ inch parallel shank drill can be used in many different hand held and machine applications
