Dormer Pramet A20012.5X31.5 (MID 5969845) center drill with 12.5mm cutting diameter and 31.5mm shank diameter. Features 118° point angle and 60° step included angle. Made from High Speed Steel (HSS) per DIN 333A standard. Suitable for steel and cast iron workpieces.
MODEL 5969845
$191.25 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Center drilling 60°
Basic Standard
DIN 333A
Coating
Bright

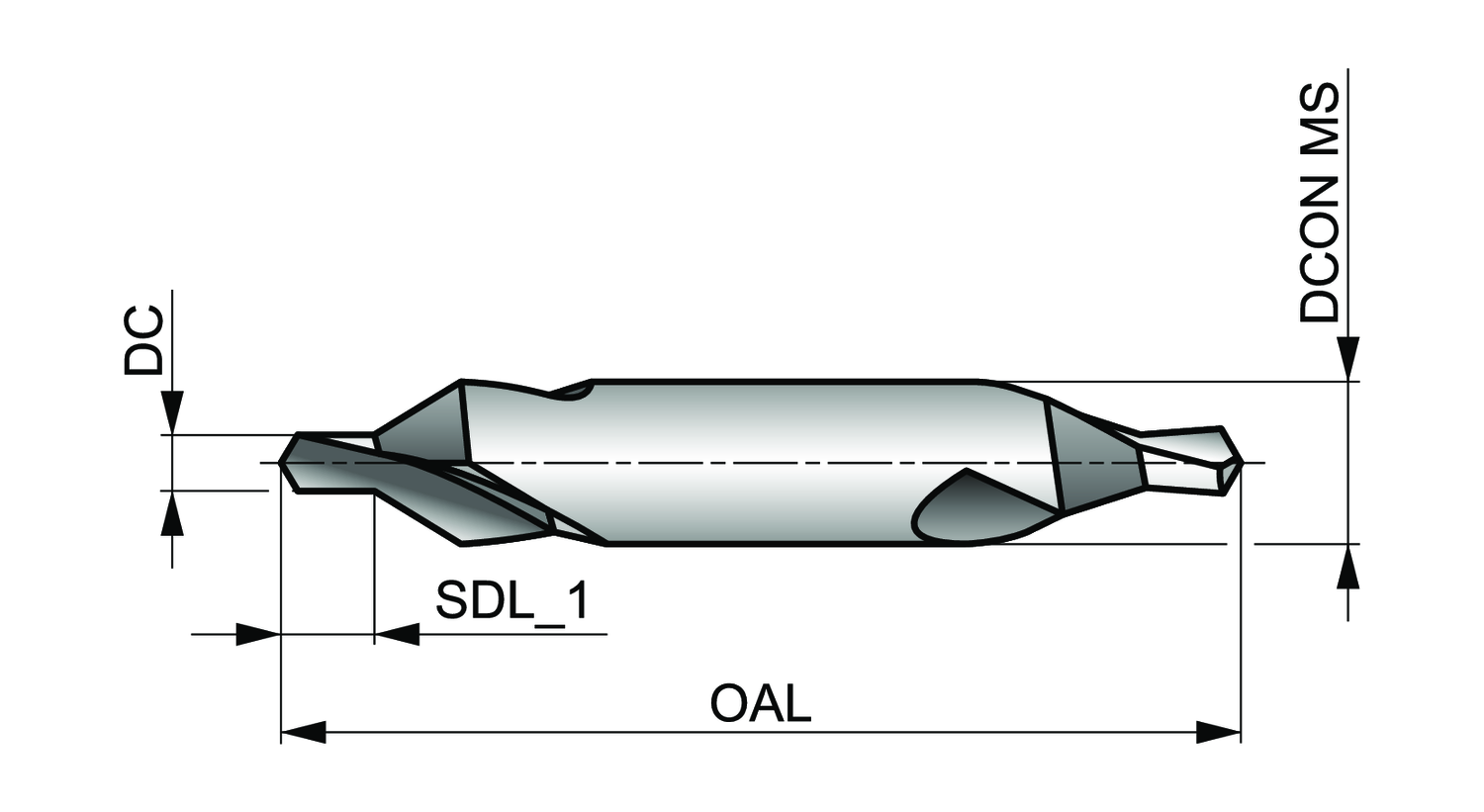

Connection diameter - inch (DCON MS)
1.2402
Connection diameter - millimeter (DCON MS)
31.5
Cutting diameter - inch (DC)
0.4921
Cutting diameter - millimeter (DC)
12.5
EDP number
214367
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, P - Steel and cast steel
MID number
5969845
Ordering code ANSI
A20012.5X31.5
Overall length - inch (OAL)
4.9213
Overall length - millimeter (OAL)
125
Point Angle (SIG)
118
Shank
Cylindrical shank
Spiral form
Standard Spiral
Step included angle (STA)
60
Usable length (ULDR)
1
Centre drill (combined drill and countersink) with 60° straight conical form, single ended and cylindrical body, 12.50mm drill diameter, a body diameter of 31.50mm and an overall length of 125mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
