Image for Illustration purposes only. Actual product may vary
Dormer Pramet A2005.0X12.5 (MID 5969870) is a 118° center drill with a 5.00 mm cutting diameter and 12.50 mm shank diameter. Made from High Speed Steel (HSS) per DIN 333A, it is suitable for steel and cast iron. The 60° step included angle ensures precise centering for subsequent drilling operations.
MODEL 5969870
$27.51 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Center drilling 60°
Basic Standard
DIN 333A
Coating
Bright

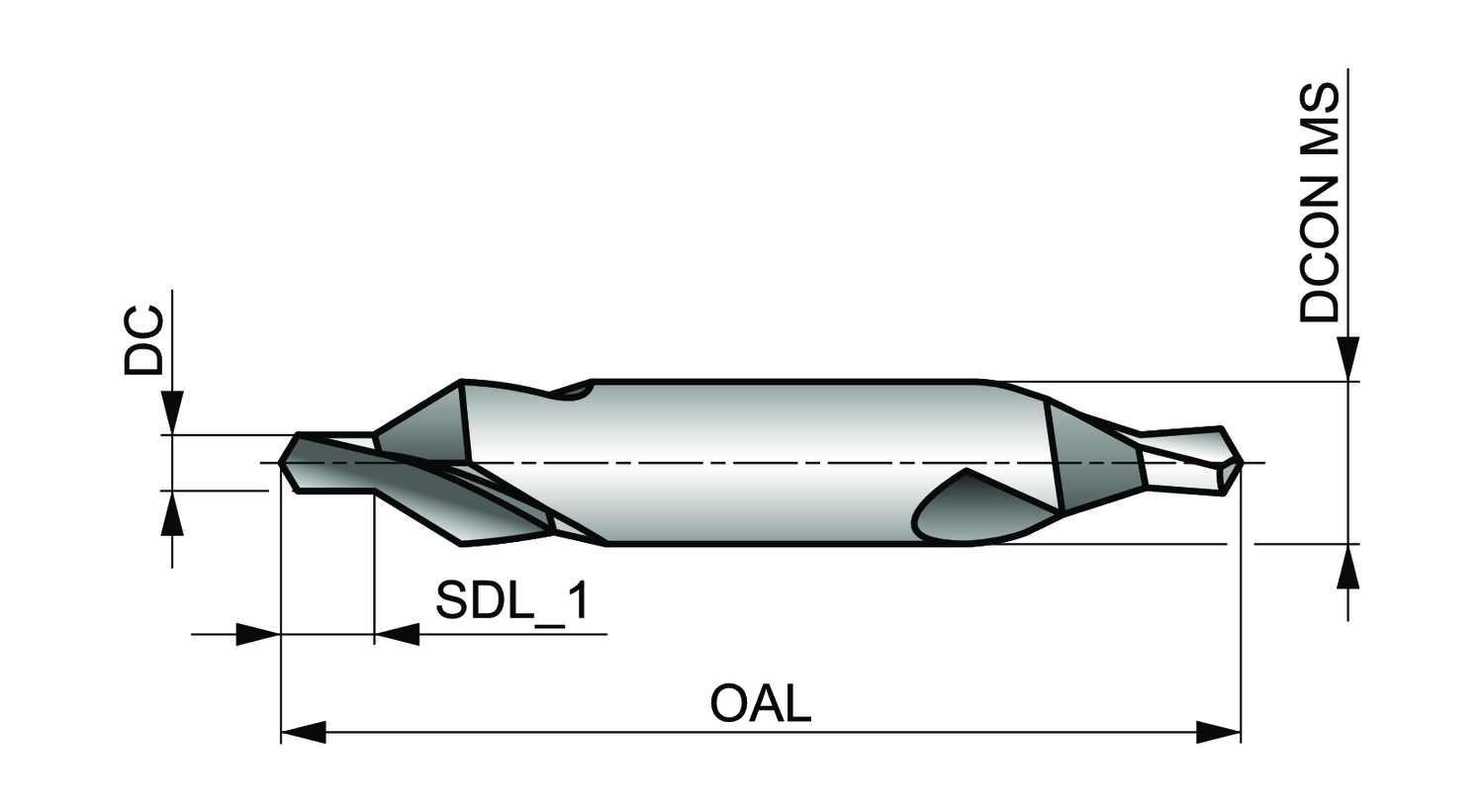

Connection diameter - inch (DCON MS)
0.4921
Connection diameter - millimeter (DCON MS)
12.5
Cutting diameter - inch (DC)
0.1969
Cutting diameter - millimeter (DC)
5
EDP number
30783
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, P - Steel and cast steel
MID number
5969870
Ordering code ANSI
A2005.0X12.5
Overall length - inch (OAL)
2.4803
Overall length - millimeter (OAL)
63
Point Angle (SIG)
118
Shank
Cylindrical shank
Spiral form
Standard Spiral
Step included angle (STA)
60
Usable length (ULDR)
1
Centre drill (combined drill and countersink) with 60° straight conical form, single ended and cylindrical body, 5.00mm drill diameter, a body diameter of 12.50mm and an overall length of 63mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
