Dormer Pramet A2051.0X3.15 (MID 5969278) is a center drill with a 1.00mm cutting diameter and 3.15mm shank diameter. It features a 118° point angle and 60° step included angle, conforming to DIN 333A. Made from High Speed Steel (HSS), it is suitable for steel and cast iron workpieces.
MODEL 5969278
$16.50 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Center drilling 60°
Basic Standard
DIN 333A
Coating
TiN
Coating property (CTP)
1

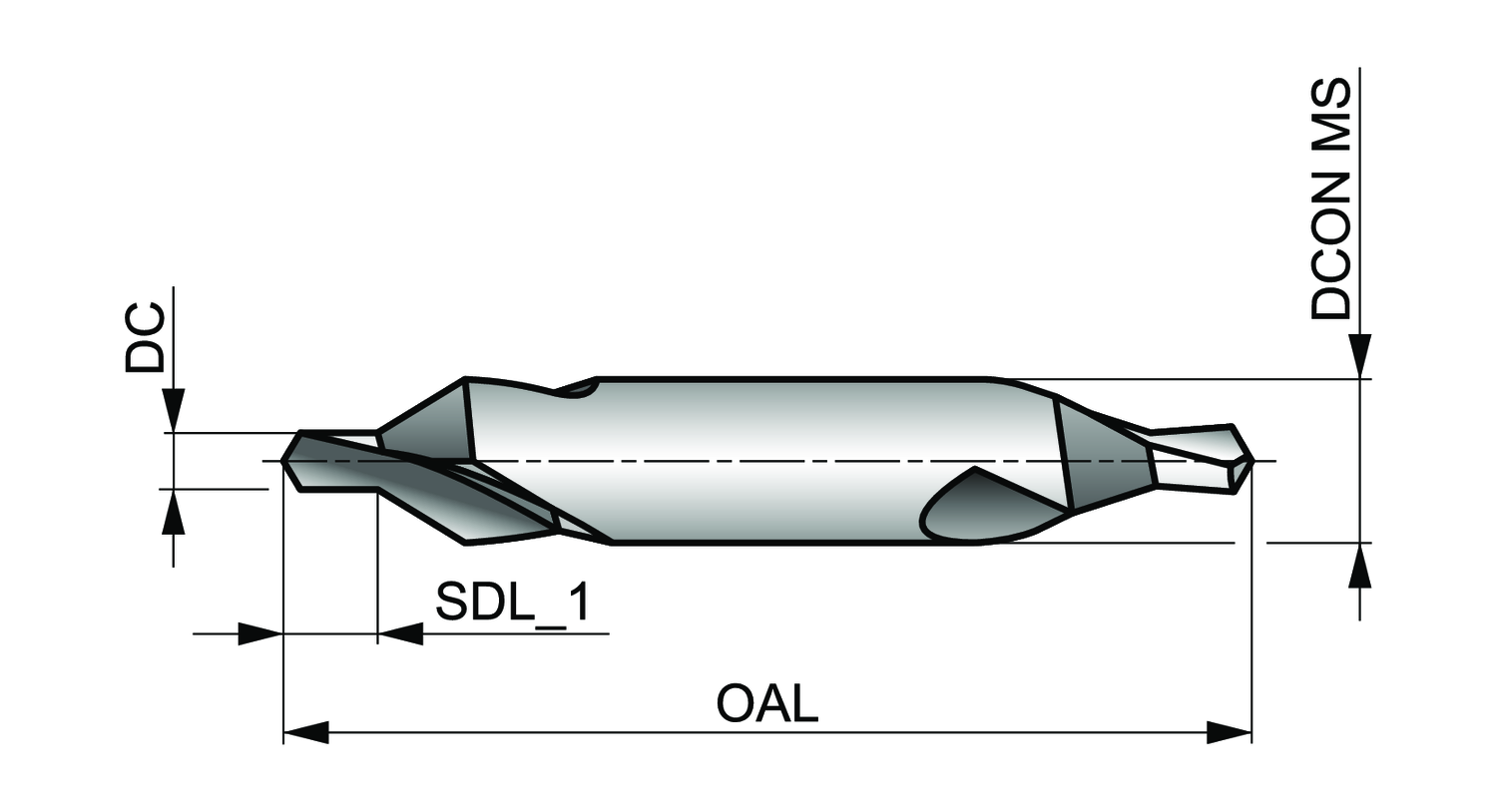

Connection diameter - inch (DCON MS)
0.124
Connection diameter - millimeter (DCON MS)
3.15
Cutting diameter - inch (DC)
0.0394
Cutting diameter - millimeter (DC)
1
EDP number
30967
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, P - Steel and cast steel
MID number
5969278
Ordering code ANSI
A2051.0X3.15
Overall length - inch (OAL)
1.2205
Overall length - millimeter (OAL)
31
Point Angle (SIG)
118
Shank
Cylindrical shank
Step included angle (STA)
60
Usable length (ULDR)
1
Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 1.00mm drill diameter, a body diameter of 3.15mm and an overall length of 31mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and TiN coating for machining free machining, plain carbon and alloy steel and grey cast-iron.
