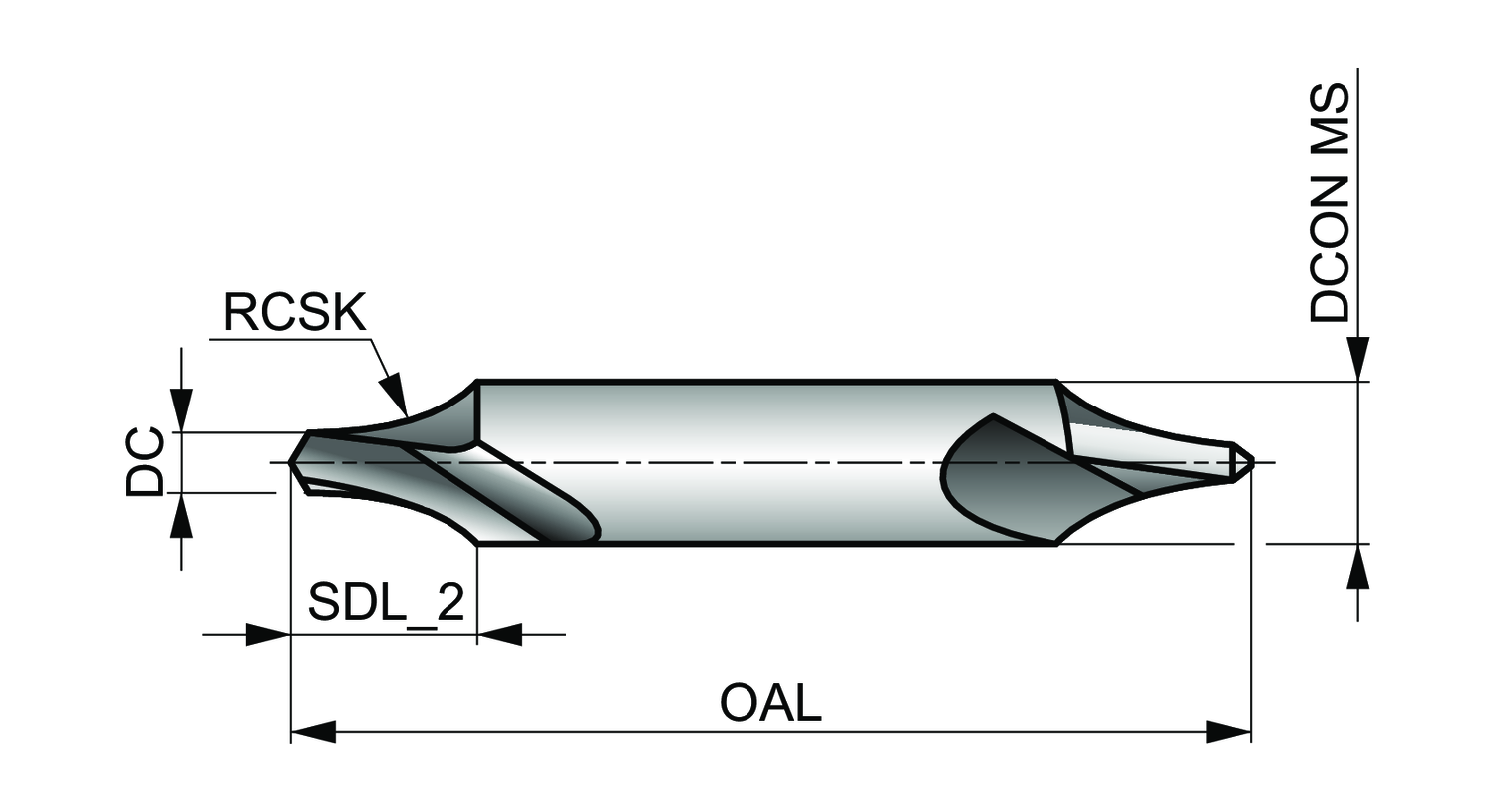

Dormer Pramet A2101.6X4.0 (MID 5969342) center drill with 1.6mm cutting diameter, 4mm shank diameter, and 118° point angle. High Speed Steel (HSS) construction to DIN 333R standard. Suitable for steel, cast steel, and cast iron workpieces.

ApplicationAngleIcon_DICT_SEL

Radius Countersink Centre Drill

Basic Standard

DIN 333R

Coating

Bright

Connection diameter - inch (DCON MS)

0.1575

Connection diameter - millimeter (DCON MS)

4

Cutting diameter - inch (DC)

0.063

Cutting diameter - millimeter (DC)

1.6

EDP number

31070

Hand (Cutting direction)

Right

Material

HSS

Material application

K - Cast iron, P - Steel and cast steel

MID number

5969342

Ordering code ANSI

A2101.6X4.0

Overall length - inch (OAL)

1.378

Overall length - millimeter (OAL)

35

Point Angle (SIG)

118

Shank

Cylindrical shank

Usable length (ULDR)

1
