Dormer Pramet A218N2 5969045 120° centre drill with 90° step included angle, ANSI standard, size N2. 0.0781" cutting diameter, 1-7/8" overall length, 33/64" flute length, 3/16" shank diameter. High Speed Steel (HSS) for steel and cast iron workpieces.

Name: Dormer Pramet A218N2 5969045 120° centre drill with 90° step included angle, ANSI standard, size N2. 0.0781" cutting diameter, 1-7/8" overall length,
Brand: Dormer Pramet
Price: 7.2 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5969045

BRAND

Dormer Pramet

SKU

6072136

WEIGHT

0.018 lb

UOM

each

$7.20 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Center drilling 90°

Basic Standard

ANSI

Coating

Bright

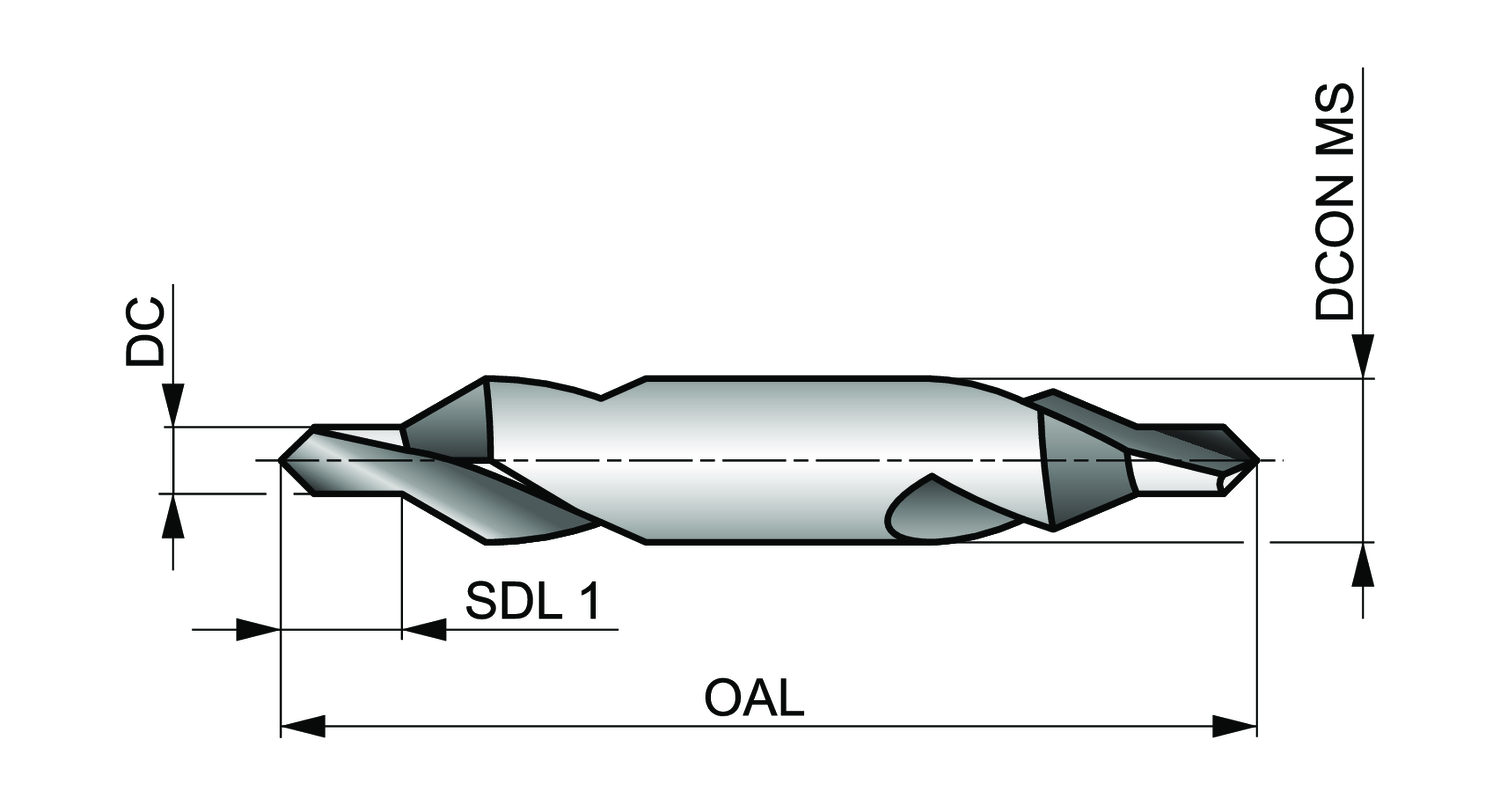

Connection diameter - fractional inch (DCON MS)

3/16

Connection diameter - inch (DCON MS)

0.1875

Connection diameter - millimeter (DCON MS)

4.76

Cutting diameter - inch (DC)

0.0781

Cutting diameter - millimeter (DC)

1.98

EDP number

239308

Hand (Cutting direction)

Right

Internal designation number

Length chip flute - fractional inch (LCF)

33/64

Length chip flute - inch (LCF)

0.5156

Material

HSS

Material application

K - Cast iron, P - Steel and cast steel

MID number

5969045

Ordering code ANSI

A218N2

Overall length - fractional inch (OAL)

1.7/8

Overall length - millimeter (OAL)

47.63

Point Angle (SIG)

120

Shank

Cylindrical shank

Step included angle (STA)

Usable length (ULDR)

Centre drill (combined drill and countersink) with 90° straight conical form, double ended and cylindrical body, size 2 with 5/64" drill diameter, a body diameter of 3/16" and an overall length of 1.7/8", according to ANSI standard to produce form A centre holes or starting pilot and concial seat for ISO Metric countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
