Dormer Pramet A400M6 (MID 5970249) is a 118° subland drill with 90° step included angle, designed for M6 thread pre-drilling. Made from High Speed Steel (HSS) with Steam Tempered finish, it features a 6.4mm cutting diameter, 142mm overall length, 94mm flute length, and 11.5mm cylindrical shank. Suitable for steel and cast iron (P/K materials). Conforms to DIN 8374.
MODEL 5970249
$72.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Step-drilling (for fasteners) 90°
Basic Standard
DIN 8374
Coating
Steam Tempered
Connection (shank) description
Cylindrical shank

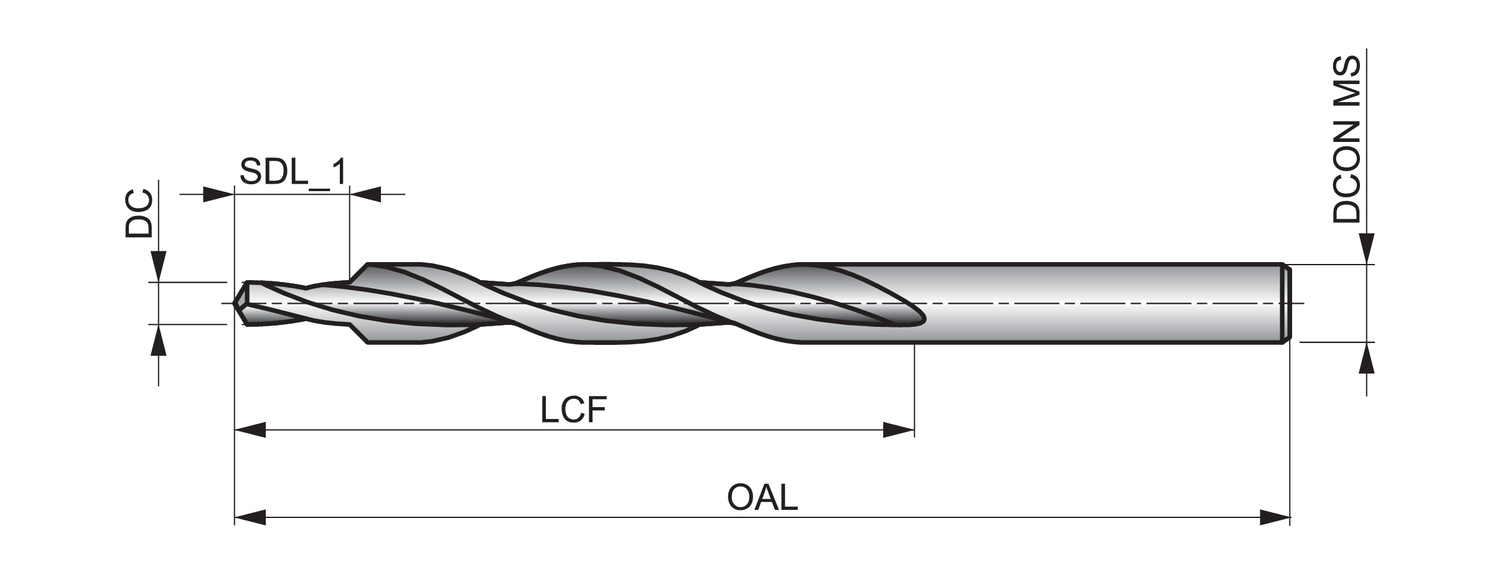

Connection diameter - inch (DCON MS)
0.4528
Connection diameter - millimeter (DCON MS)
11.5
Cutting diameter - inch (DC)
0.252
Cutting diameter - millimeter (DC)
6.4
Drill Length
Long
EDP number
34347
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
3.7008
Length chip flute - millimeter (LCF)
94
Material
HSS
Material application
K - Cast iron, P - Steel and cast steel
MID number
5970249
Ordering code ANSI
A400M6
Overall length - inch (OAL)
5.5906
Overall length - millimeter (OAL)
142
Point Angle (SIG)
118
Spiral form
Standard Spiral
Step included angle (STA)
90
Surface treatement
Steam Tempered
Thread diameter size (TDZ)
M6
Usable length (ULDR)
4
Subland drill with 90° included step angle, straight shank and a drilling-pilot diameter of 6.40mm with a length of 15.00mm, a large diameter of 11.50mm and an overall length of 142mm, according to DIN 8374 standard to produce a close fit through hole and conical seat for M6 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
