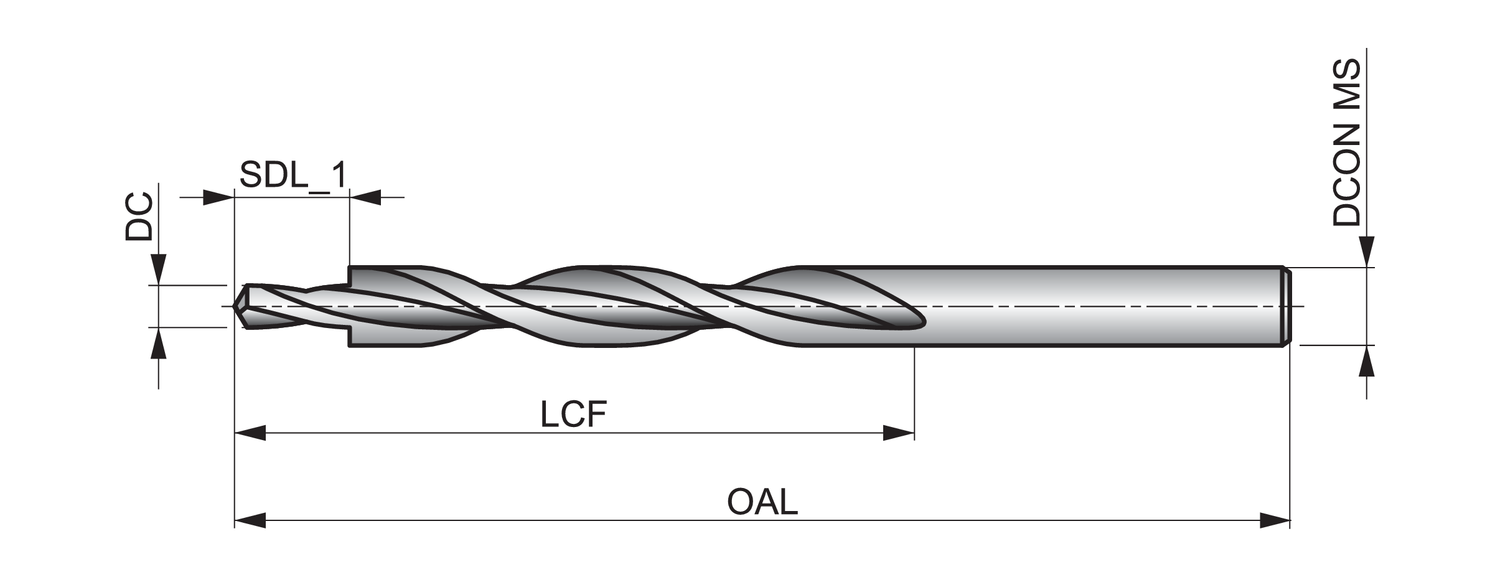

Dormer Pramet A402M10 (MID 5970272) is a long subland drill with 11mm cutting diameter, 191mm overall length, and 130mm flute length. It features a 118° point angle, standard spiral flute geometry, and cylindrical shank (18mm diameter). Made from High Speed Steel (HSS) with Steam Tempered surface treatment, it is designed for drilling and thread forming in steel and cast iron (material groups P and K). Conforms to DIN 8376.
MODEL 5970272
$173.15 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Step-drilling (for fasteners) 180°
Basic Standard
DIN 8376
Coating
Steam Tempered
Connection (shank) description
Cylindrical shank
Connection diameter - inch (DCON MS)
0.7087
Connection diameter - millimeter (DCON MS)
18
Cutting diameter - inch (DC)
0.4331
Cutting diameter - millimeter (DC)
11
Drill Length
Long
EDP number
34439
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
5.1181
Length chip flute - millimeter (LCF)
130
Material
HSS
Material application
K - Cast iron, P - Steel and cast steel
MID number
5970272
Ordering code ANSI
A402M10
Overall length - inch (OAL)
7.5197
Overall length - millimeter (OAL)
191
Point Angle (SIG)
118
Spiral form
Standard Spiral
Step included angle (STA)
180
Surface treatement
Steam Tempered
Thread diameter size (TDZ)
M10
Usable length (ULDR)
4
Subland drill with 180° included step angle, straight shank and a drilling-pilot diameter of 11.00mm with a length of 23.00mm, a large diameter of 18.00mm and an overall length of 191mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M10 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron.
