Dormer Pramet A412M10 5970338 jobber length step drill with 11mm (0.4331") cutting diameter and M10 thread size. High Speed Steel (HSS) with Steam Tempered finish, 118° point angle, 90° step included angle. Cylindrical shank, 21.5mm connection diameter, 141mm overall length, 70mm flute length. Suitable for steel, cast steel, stainless steel, and cast iron.
MODEL 5970338
$90.07 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Step-drilling (for fasteners) 90°
Basic Standard
DORMER
Coating
Steam Tempered
Connection (shank) description
Cylindrical shank

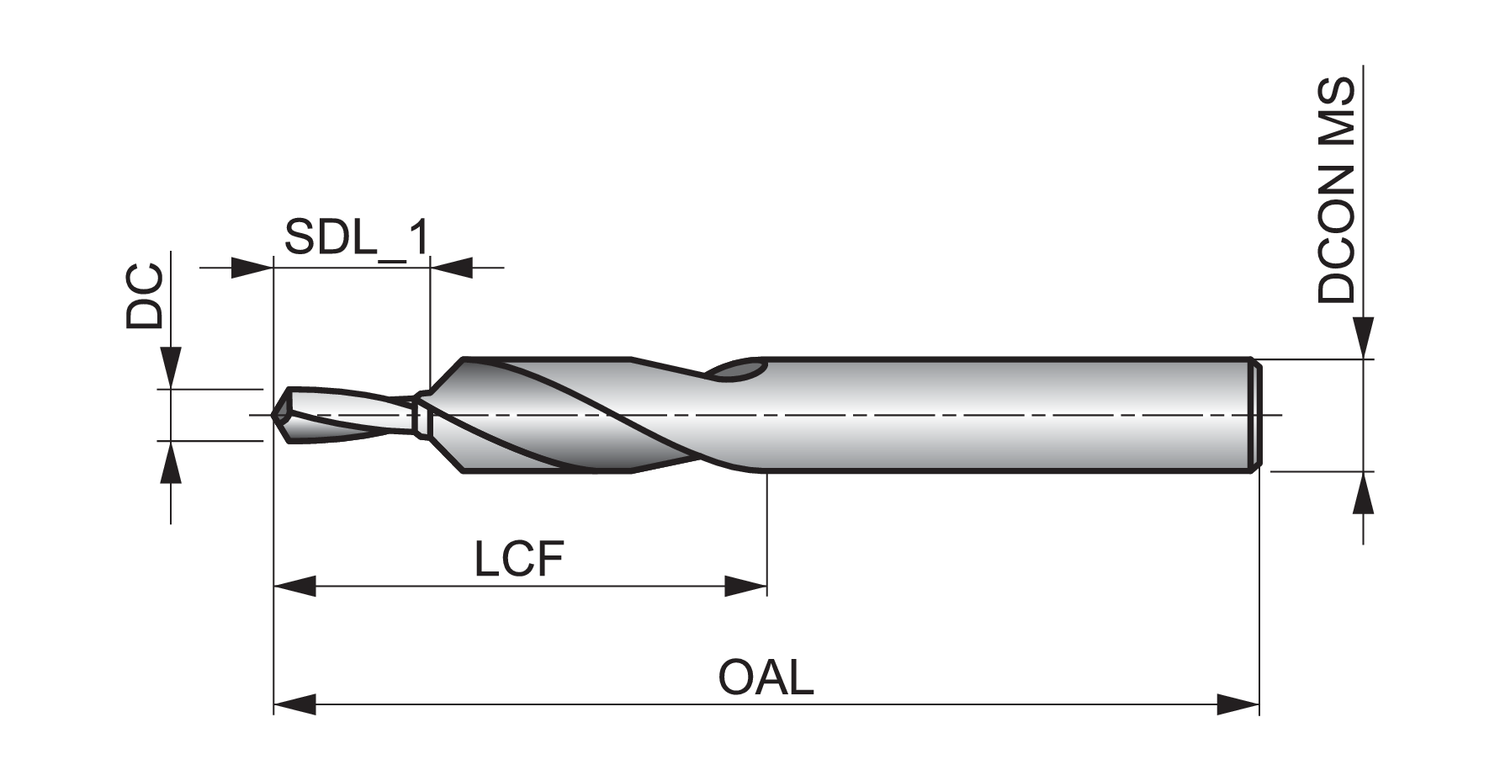

Connection diameter - inch (DCON MS)
0.8465
Connection diameter - millimeter (DCON MS)
21.5
Cutting diameter - inch (DC)
0.4331
Cutting diameter - millimeter (DC)
11
Drill Length
Jobber
EDP number
213698
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
2.7559
Length chip flute - millimeter (LCF)
70
Material
HSS
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel
MID number
5970338
Ordering code ANSI
A412M10
Overall length - inch (OAL)
5.5512
Overall length - millimeter (OAL)
141
Point Angle (SIG)
118
Step included angle (STA)
90
Surface treatement
Steam Tempered
Thread diameter size (TDZ)
M10
Usable length (ULDR)
2.5
Step drill with 90° included step angle, straight shank and a drilling-pilot diameter of 11.00mm with a length of 23.00mm, a large diameter of 21.50mm and an overall length of 141mm, according to DORMER standard to produce a medium fit through hole and conical seat for M10 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron.
