Dormer Pramet A6209.0 (MID 6499939) is a stub length drill bit conforming to DIN 1897. It has a 9.00mm diameter and is designed for stainless steel (material application M). The drill is made from high-speed steel and features a standard point geometry.
MODEL 6499939
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$20.87 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 130°
Basic Standard
DIN 1897
Coating
Bronze

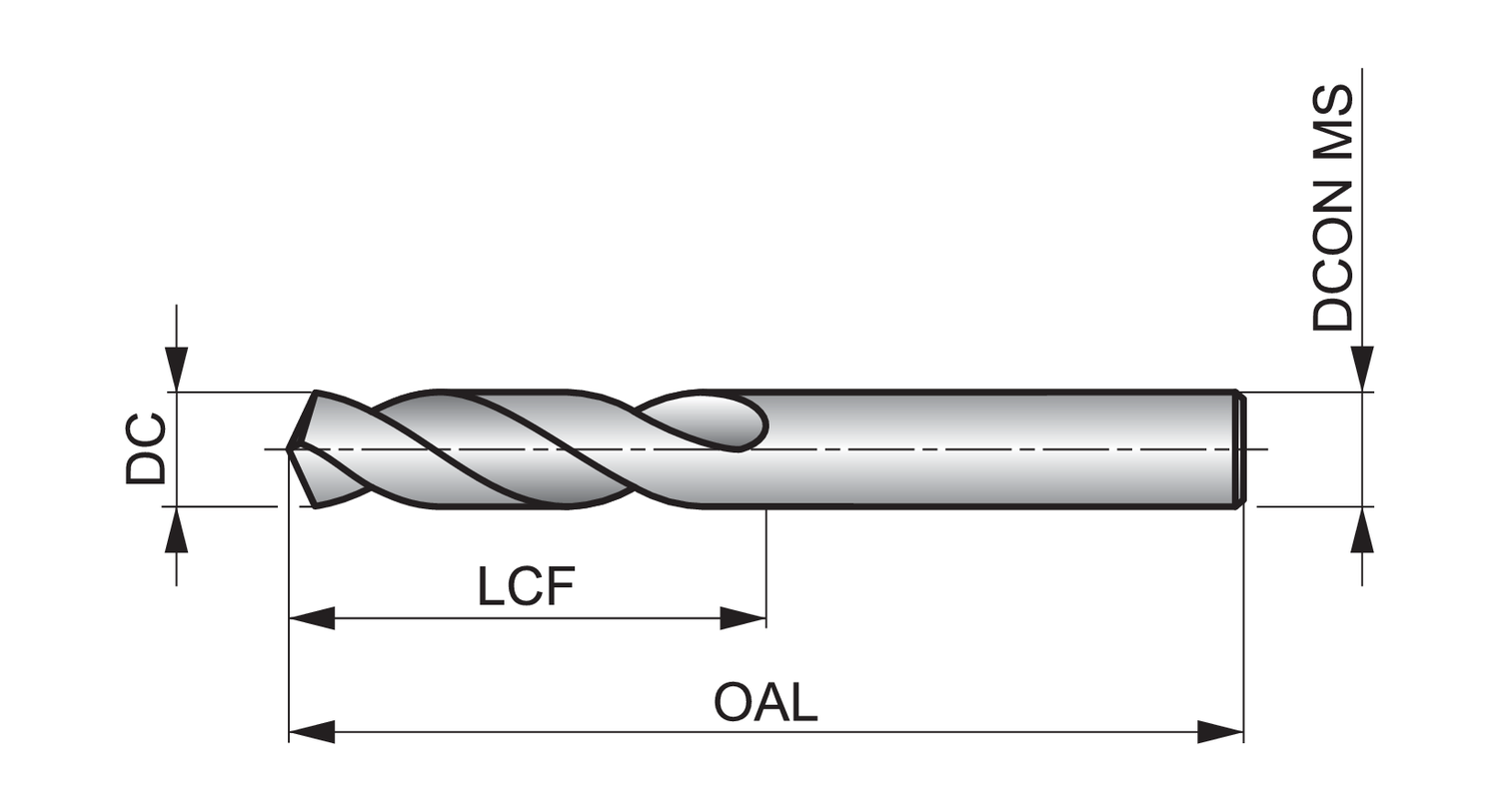

Connection diameter - inch (DCON MS)
0.3543
Connection diameter - millimeter (DCON MS)
9
Cutting diameter - inch (DC)
0.3543
Cutting diameter - millimeter (DC)
9
Cutting diameter tolerance class (TCDC)
h8
EDP number
46499939
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
1.5748
Length chip flute - millimeter (LCF)
40
Material application
M - Stainless steel
Material code (BMC)
HSS-E
MID number
6499939
Ordering code ANSI
A6209.0
Overall length - inch (OAL)
3.3071
Overall length - millimeter (OAL)
84
Point Angle (SIG)
130
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
2.5
The A620 short drill is available in a range of metric sizes.
It has a 130 degree point angle which helps keep the drill centered on the hole and reduces the amount of downward force needed to cut the workpiece.
The bronze finish stops workpiece material from sticking to the cutting edge of the tool.
The A620 is manufactured from premium High Speed cobalt and can be used to machine a wide variety of materials, being particularly suited to drilling stainless steels
