Dormer Pramet A720.18 5971205 micro drill with 0.18mm (0.007") cutting diameter, 1.4mm flute length, and 118° point angle. Cobalt High Speed Steel (HSS-E) construction with Standard Spiral flute geometry. Conforms to DIN 1899. Suitable for steel and cast iron (material groups P and K).

Name: Dormer Pramet A720.18 5971205 micro drill with 0.18mm (0.007") cutting diameter, 1.4mm flute length, and 118° point angle. Cobalt High Speed Steel (HS
Brand: Dormer Pramet
Price: 16.13 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5971205

BRAND

Dormer Pramet

SKU

6072546

WEIGHT

0.002 lb

UOM

each

This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.

$16.13 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity(10 minimum)

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Drill point 118°

Basic Standard

DIN 1899

Coating

Bright

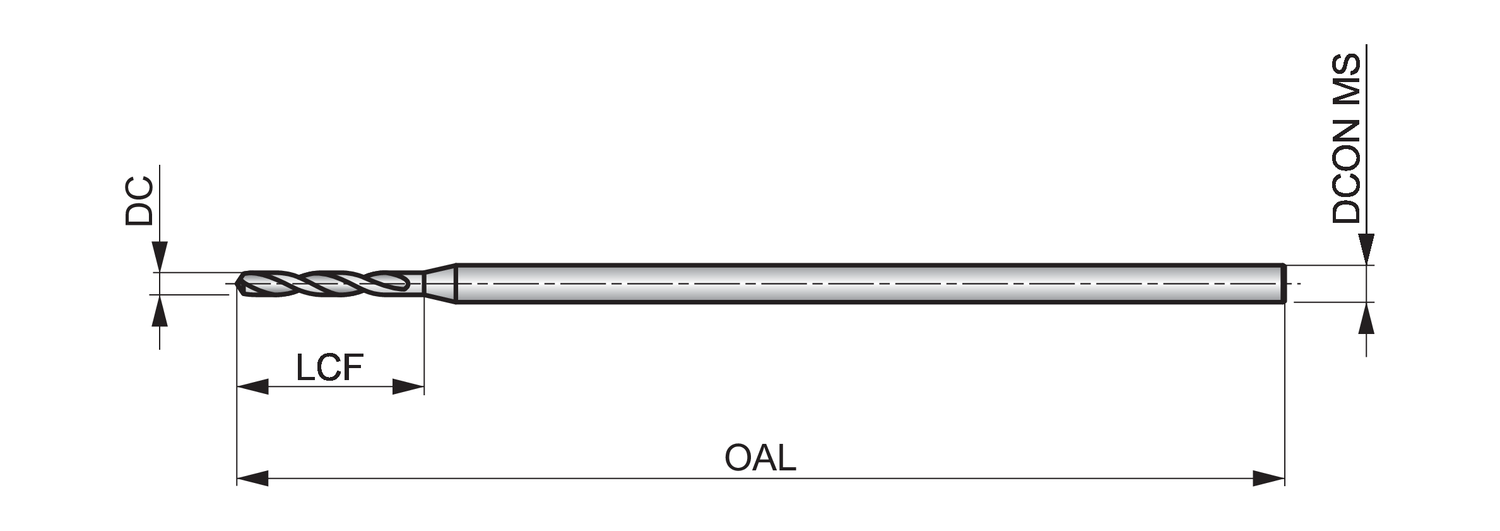

Connection diameter - inch (DCON MS)

0.0394

Connection diameter - millimeter (DCON MS)

Cutting diameter - inch (DC)

0.007

Cutting diameter - millimeter (DC)

0.18

Cutting diameter tolerance class (TCDC)

+0/-0, 004mm

EDP number

44995

Hand (Cutting direction)

Right

Length chip flute - inch (LCF)

0.0551

Length chip flute - millimeter (LCF)

1.4

Material

HSS-E

Material application

K - Cast iron, P - Steel and cast steel

MID number

5971205

Ordering code ANSI

A720.18

Overall length - inch (OAL)

0.9843

Overall length - millimeter (OAL)

Point Angle (SIG)

118

Shank

Cylindrical shank

Spiral form

Standard Spiral

Usable length (ULDR)

2.5

Dormer’s A720 is a metric micro drill, supplied in very small diameters ranging from 0.15 mm to 1.40 mm.

To make tool holding easier, all drills have either a 1.00 mm or 1.50 mm shank diameter.

The drills all have a 118 degree 4-facet point which is a great aid to self-centering and reduces the amount of force needed to drill a hole.

The drills have a bright finish to prevent workpiece material from sticking to the cutting edge and are made from High Speed cobalt so are also suitable for drilling abrasive materials
