Image for Illustration purposes only. Actual product may vary
Dormer A7775.7 5971146 Jobber Drill Split Point DIN 338 5.70 mm
MODEL 5971146
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$7.50 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
DIN 338
Coating
Bronze
Connection (shank) description
Cylindrical shank

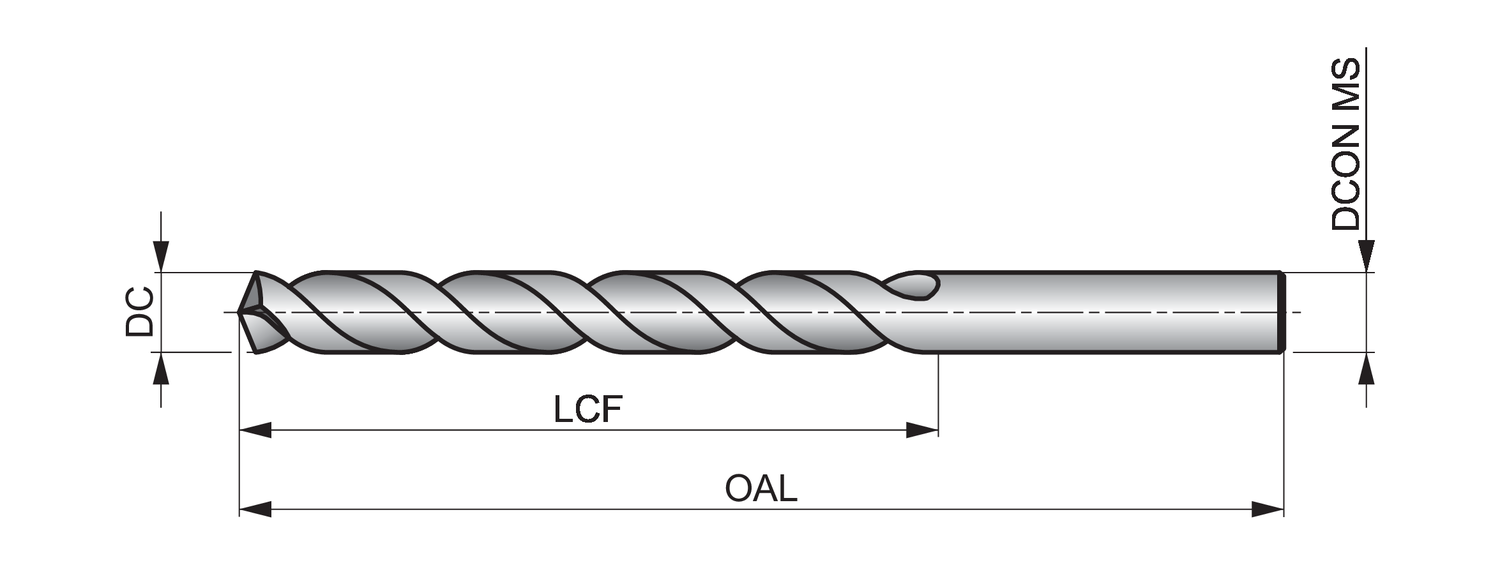

Connection diameter - millimeter (DCON MS)
5.7
Cutting diameter - inch (DC)
0.2244
Cutting diameter - millimeter (DC)
5.7
Cutting diameter tolerance class (TCDC)
h8
Drill Length
Jobber
EDP number
374429
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
2.2441
Length chip flute - millimeter (LCF)
57
Material
HSS-E
Material application
K - Cast iron, P - Steel and cast steel, S - High-temperature alloys
MID number
5971146
Ordering code ANSI
A7775.7
Overall length - inch (OAL)
3.6614
Overall length - millimeter (OAL)
93
Point Angle (SIG)
135
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
Recommended for use in difficult materials and applications, the A777 drill from Dormer has a 135 degree split point which helps to self-center the drill and reduces the amount of force needed to drill the hole, whilst the bronze oxide finish helps stop work piece material from sticking to the cutting edge of the drill.
The A777 is made from premium high speed cobalt material which means it can be used for drilling hard materials, including tool steels.
Producing more accurate sized holes with a better finish, the A777 drill really is a great performer.
*Note: 4 Facet Point up to 1.4mm
