Dormer Pramet A5101/8 5970041 ADX jobber drill, DIN 338, 1/8" (3.18mm) diameter, TiN coated, High Speed Steel (HSS), 130° point angle, 65mm overall length, 36mm flute length, cylindrical shank. Suitable for steel, cast iron, stainless steel, and non-ferrous metals.

Name: Dormer Pramet A5101/8 5970041 ADX jobber drill, DIN 338, 1/8" (3.18mm) diameter, TiN coated, High Speed Steel (HSS), 130° point angle, 65mm overall le
Brand: Dormer Pramet
Price: 17.6 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5970041

BRAND

Dormer Pramet

SKU

6072863

WEIGHT

0.007 lb

UOM

each

$17.60 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Drill point 130°

Basic Standard

DIN 338

Coating

TiN

Coating process

PVD

Coating property (CTP)

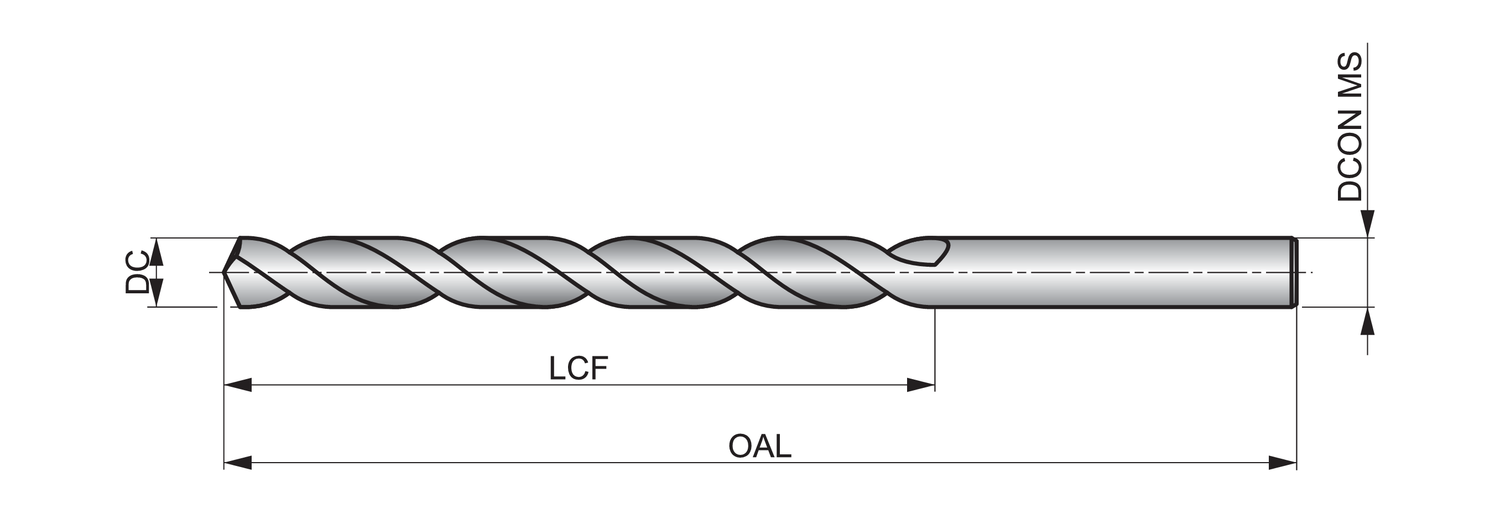

Connection (shank) description

Cylindrical shank

Connection diameter - inch (DCON MS)

0.1252

Connection diameter - millimeter (DCON MS)

3.18

Cutting diameter - fractional inch (DC)

1/8

Cutting diameter - inch (DC)

0.125

Cutting diameter - millimeter (DC)

3.18

Cutting diameter tolerance class (TCDC)

Drill Length

Jobber

EDP number

168974

Hand (Cutting direction)

Right

Length chip flute - inch (LCF)

1.4173

Length chip flute - millimeter (LCF)

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5970041

Ordering code ANSI

A5101/8

Overall length - inch (OAL)

2.5591

Overall length - millimeter (OAL)

Point Angle (SIG)

130

Spiral form

Quick Spiral Flute Design 32°- 40°

Usable length (ULDR)

Dormer’s A510 drill is available in a range of fractional and metric diameters.

The drills have a 130 degree thinned point which aids self-centering and reduces the force needed when drilling a hole.

The drills have a titanium nitride coating which increases the life of the drill and improves performance when drilling harder materials.

The specially designed convex cutting edges on the A510 help break chips more easily so cut material is removed more quickly and you can increase cutting speeds and feeds, with a corresponding reduction in machining times.

Made from premium High speed material, the A510 can be used for drilling many materials including steels, aluminium and stainless steels.

The A510 is a high performance drill and is able to produce accurate, high quality holes (h9 tolerance), even when operating at high speeds and feeds
