Dormer Pramet A5107.4 (MID 5970362) ADX jobber drill, 7.40mm diameter, 109mm overall length, 69mm flute length, TiN coated High Speed Steel (HSS), 130° point angle, cylindrical shank, DIN 338. Suitable for steel, cast iron, stainless steel, and non-ferrous metals.

Name: Dormer Pramet A5107.4 (MID 5970362) ADX jobber drill, 7.40mm diameter, 109mm overall length, 69mm flute length, TiN coated High Speed Steel (HSS), 130
Brand: Dormer Pramet
Price: 32.46 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5970362

BRAND

Dormer Pramet

SKU

6072958

WEIGHT

0.058 lb

UOM

each

$32.46 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Drill point 130°

Basic Standard

DIN 338

Coating

TiN

Coating process

PVD

Coating property (CTP)

Connection (shank) description

Cylindrical shank

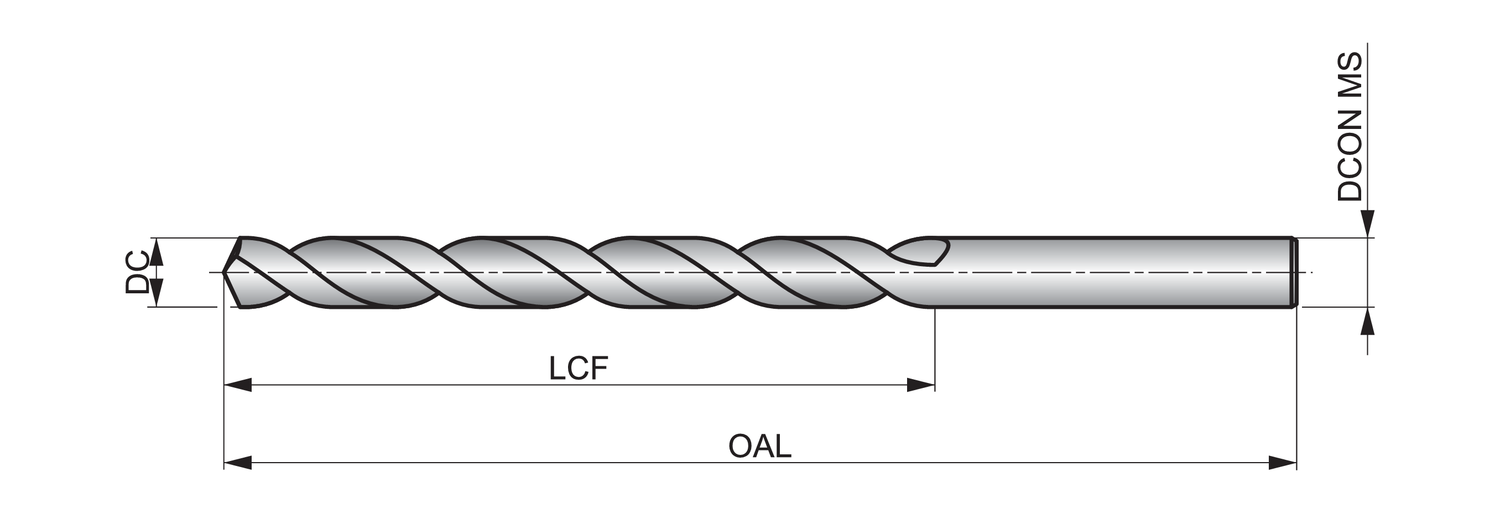

Connection diameter - millimeter (DCON MS)

7.4

Cutting diameter - inch (DC)

0.2913

Cutting diameter - millimeter (DC)

7.4

Cutting diameter tolerance class (TCDC)

Drill Length

Jobber

EDP number

36938

Hand (Cutting direction)

Right

Length chip flute - inch (LCF)

2.7165

Length chip flute - millimeter (LCF)

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5970362

Ordering code ANSI

A5107.4

Overall length - inch (OAL)

4.2913

Overall length - millimeter (OAL)

109

Point Angle (SIG)

130

Spiral form

Quick Spiral Flute Design 32°- 40°

Usable length (ULDR)

Dormer’s A510 drill is available in a range of fractional and metric diameters.

The drills have a 130 degree thinned point which aids self-centering and reduces the force needed when drilling a hole.

The drills have a titanium nitride coating which increases the life of the drill and improves performance when drilling harder materials.

The specially designed convex cutting edges on the A510 help break chips more easily so cut material is removed more quickly and you can increase cutting speeds and feeds, with a corresponding reduction in machining times.

Made from premium High speed material, the A510 can be used for drilling many materials including steels, aluminium and stainless steels.

The A510 is a high performance drill and is able to produce accurate, high quality holes (h9 tolerance), even when operating at high speeds and feeds
