Dormer Pramet A5208.5 (MID 5969960) ADX stub drill, 8.5mm (0.3346") diameter, 37mm flute length, 130° point angle, High Speed Steel (HSS) with coating, DIN 1897 standard. Suitable for steel, stainless steel, cast iron, non-ferrous metals, and high-temperature alloys.
MODEL 5969960
$50.03 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 130°
Basic Standard
DIN 1897
Coating
TiN
Coating property (CTP)
1

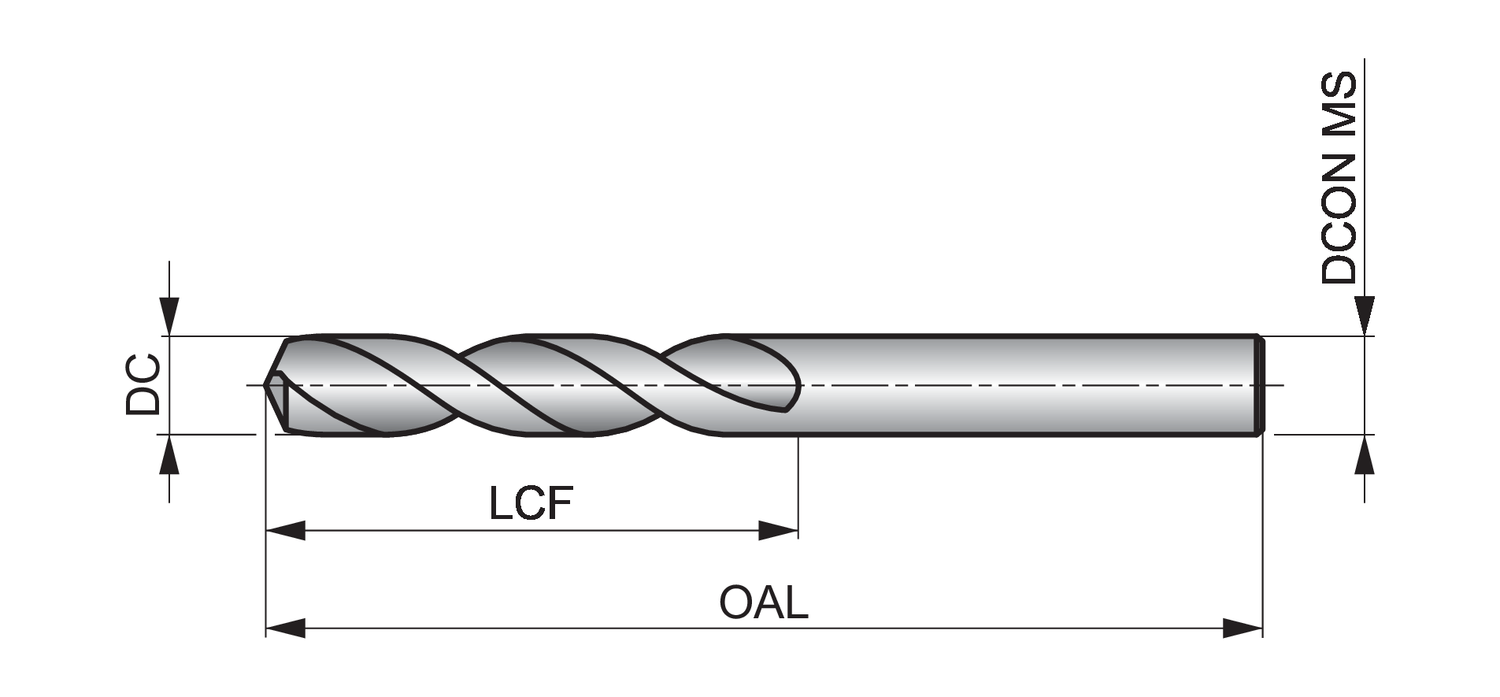

Connection diameter - millimeter (DCON MS)
8.5
Cutting diameter - inch (DC)
0.3346
Cutting diameter - millimeter (DC)
8.5
Cutting diameter tolerance class (TCDC)
h8
EDP number
39458
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
1.4567
Length chip flute - millimeter (LCF)
37
Material
HSS
MID number
5969960
Ordering code ANSI
A5208.5
Overall length - inch (OAL)
3.1102
Overall length - millimeter (OAL)
79
Point Angle (SIG)
130
Shank
Cylindrical shank
Spiral form
Quick Spiral Flute Design 32°- 40°
Usable length (ULDR)
2.5
The A520 short drill is part of Dormer’s ADX range of drills and is designed for high performance drilling.
It has a 130 degree thinned point which both helps with self-centering, so the hole is exactly where you want it, and also means less force is needed to drive the drill through the workpiece material.
The titanium nitride coating gives you a better tool life and also improves performance when drilling harder materials.
The drill has specially shaped cutting edges which break the workpiece material into smaller chips which are more easily removed from the hole.
This, in turn, means you can use higher speeds and feeds to drill the hole – increasing your productivity.
The A520 high performance drill is capable of producing good quality and accurate holes (to H9 hole tolerance) even at high speeds and feeds
