Dormer A9773.0X190 5973110 130° PFX Extra Length Drill 3.00 mm
MODEL 5973110
$67.18 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplication Material
P - Steel and cast steel
ApplicationAngleIcon_DICT_SEL
Drill point 130°
Basic Standard
DIN 1869 / 2
Coating
Bright
Connection (shank) description
Cylindrical shank

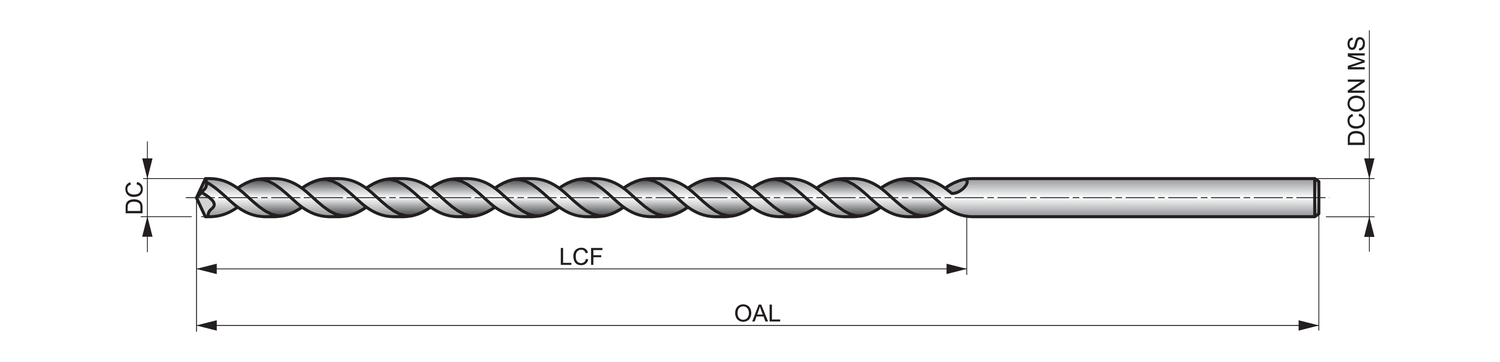

Connection diameter - millimeter (DCON MS)
3
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
Cutting diameter tolerance class (TCDC)
h8
Drill Length
XL
EDP number
148709
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
5.1181
Length chip flute - millimeter (LCF)
130
Material
HSS-E
Material application
P - Steel and cast steel
MID number
5973110
Ordering code ANSI
A9773.0X190
Overall length - inch (OAL)
7.4803
Overall length - millimeter (OAL)
190
Point Angle (SIG)
130
Spiral form
Quick Spiral
Surface treatement
Original surface
Usable length (ULDR)
20
The A977 extra long series PFX drill comes in metric diameters from 1.50 mm to 14.00 mm.
The PFX series of drills have a specially designed parabolic flutes which eliminates the need to drill deep holes in short steps (pecking), so even extra deep holes can be drilled in a single pass.
The drills have a bright finish which helps stop workpiece material from sticking to the cutting edge.
Made from premium High Speed Cobalt, the drills can be used to drill a number of materials including steels, stainless steels and aluminium.
The A977 has a 130 degree point which helps with self-centering and also means less force is needed to drill the hole.
The A977 drills are recommended for drilling very deep holes and in applications where extra reach is needed
