Dormer A9786.0X330 5973231 130° PFX Extra Length Drill 6.00 mm
MODEL 5973231
$112.66 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplication Material
P - Steel and cast steel
ApplicationAngleIcon_DICT_SEL
Drill point 130°
Basic Standard
DIN 1869 / 3
Coating
Bright
Connection (shank) description
Cylindrical shank
Connection diameter - millimeter (DCON MS)
6
Cutting diameter - inch (DC)
0.2362
Cutting diameter - millimeter (DC)
6
Cutting diameter tolerance class (TCDC)
h8
Drill Length
XL
EDP number
148907
Hand (Cutting direction)
Right

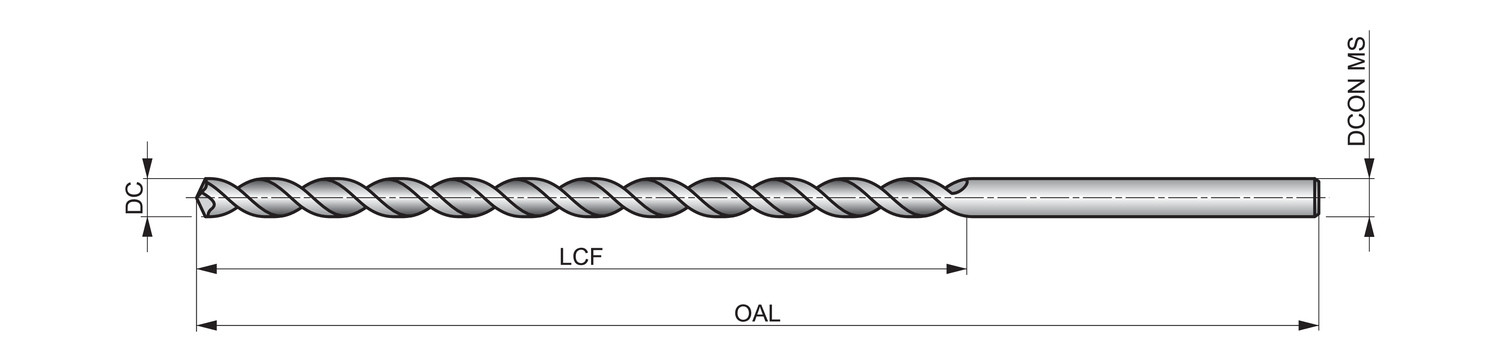

Length chip flute - inch (LCF)
8.8583
Length chip flute - millimeter (LCF)
225
Material
HSS-E
Material application
P - Steel and cast steel
MID number
5973231
Ordering code ANSI
A9786.0X330
Overall length - inch (OAL)
12.9921
Overall length - millimeter (OAL)
330
Point Angle (SIG)
130
Spiral form
Quick Spiral
Surface treatement
Original surface
Usable length (ULDR)
25
The A978 extra long series drills come in a range of metric diameters from 3.00 mm to 10.00 mm.
Part of Dormer’s PFX range of drills, the A978 drills have a specially designed parabolic flute which means you can even drill extra deep holes in a single pass.
These extra long series drills are recommended for drilling extra deep holes and for applications where a very long reach is needed.
They are made from premium High Speed cobalt and are suitable for drilling a wide range of materials including steels, aluminium and stainless steels, whilst the bright finish ensures workpiece material does not stick to the cutting edge, so giving you a cleaner, more accurate hole.
The 130 degree point means the drill will not skid over the surface of the workpiece and also less force is needed to drill a hole
