Dormer R12220.0 5979610 20mm solid carbide 120° short spotting drill, h6 tolerance, for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. Stub length design with 1x usable length factor.
MODEL 5979610
$565.54 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Spotting 120°
Basic Standard
DORMER
Coating
Bright

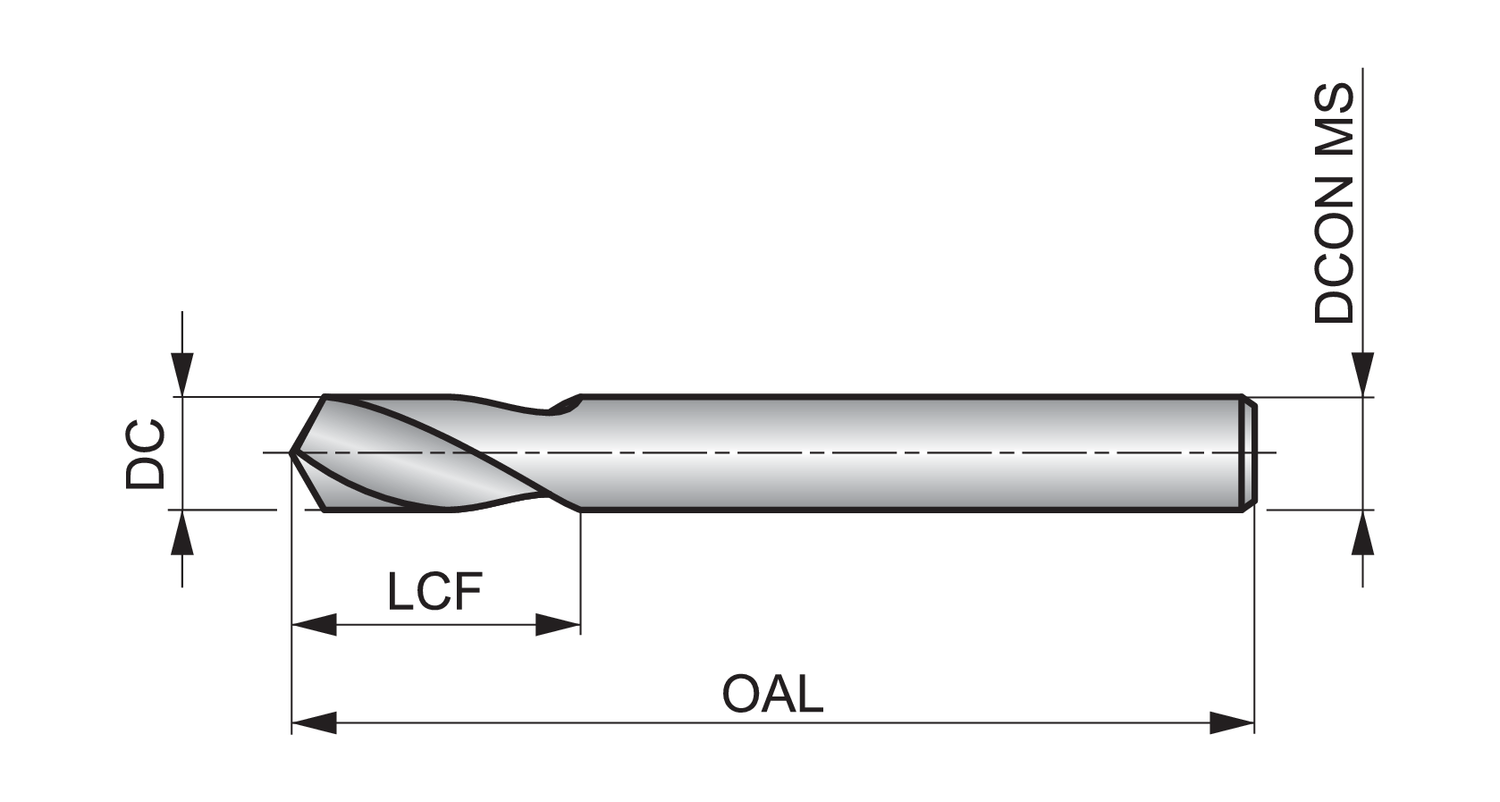

Connection diameter - millimeter (DCON MS)
20
Cutting diameter - millimeter (DC)
20
Cutting Diameter Inch Decimal
0.7874
Cutting diameter tolerance class (TCDC)
h6
EDP number
114674
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
1.5748
Length chip flute - millimeter (LCF)
40
Material
Carbide
MID number
5979610
Ordering code ANSI
R12220.0
Overall length - inch (OAL)
5.1575
Overall length - millimeter (OAL)
131
Point Angle (SIG)
120
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
Dormer’s R122 spotting drills have a 120 degree point which helps with self-centering and reduces the push force needed to drill into the application material.
The precision engineered point angle provides an accurate guide to help with centering of follow-up drilling of the hole, whilst the bright finish prevents workpiece material from sticking to the cutting edges of the tool to make sure you get clean and accurate results.
R122 drills are manufactured from premium carbide for drilling a wide range of materials including steels, aluminium and stainless steels and come in a large selection of sizes to suit most drilling applications, making them a very versatile choice
