Image for Illustration purposes only. Actual product may vary
Dormer R1256.0 7820528 Spotting Drill - 150°
MODEL 7820528
$65.14 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Spotting 150°
Basic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

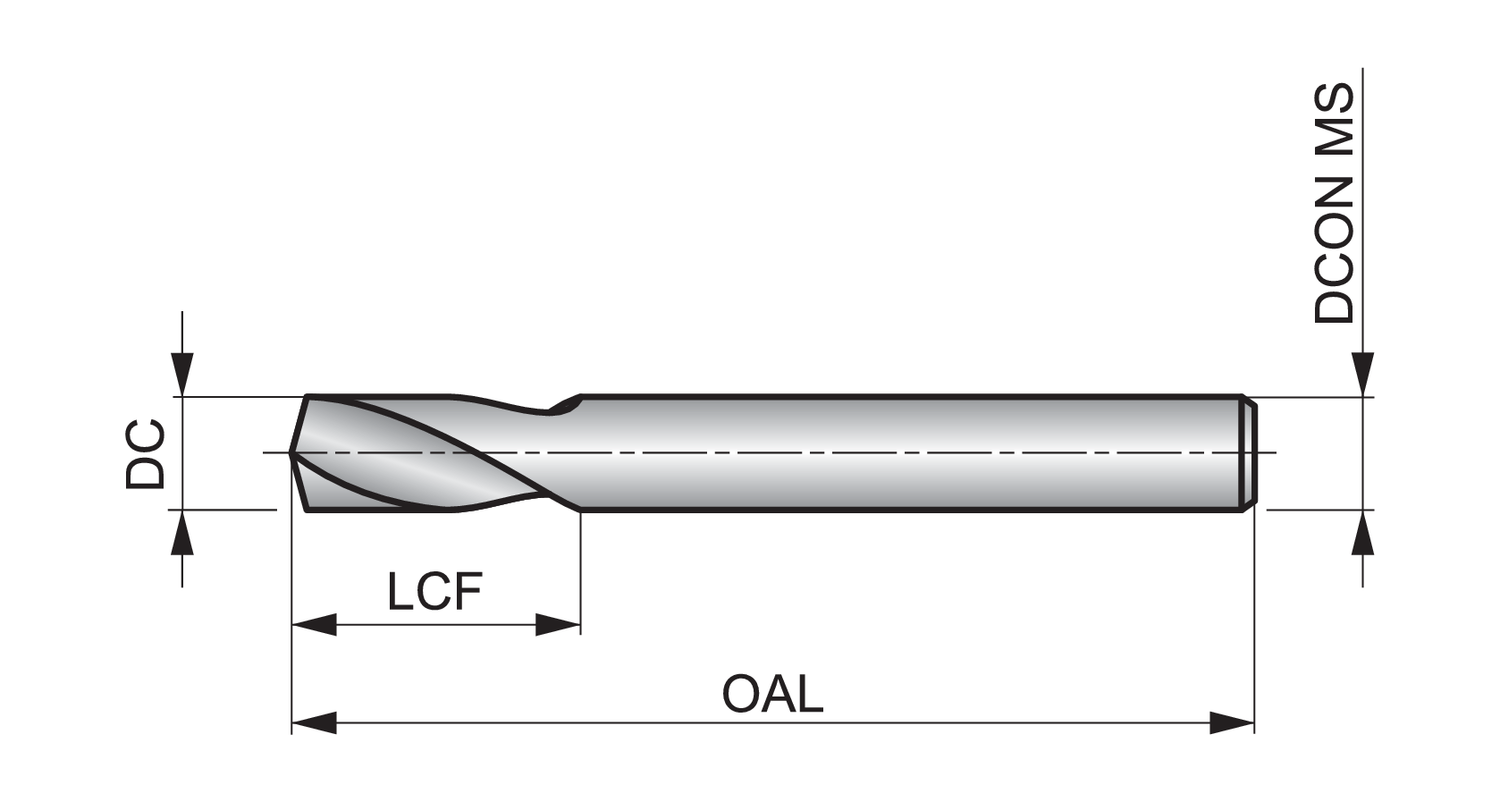

Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.2362
Cutting diameter - millimeter (DC)
6
Cutting diameter tolerance class (TCDC)
h6
EDP number
7820528
Hand (Cutting direction)
Right
Length chip flute - inch (LCF)
0.6693
Length chip flute - millimeter (LCF)
17
Material
HM
MID number
7820528
Ordering code ANSI
R1256.0
Overall length - inch (OAL)
2.5984
Overall length - millimeter (OAL)
66
Point Angle (SIG)
150
Shank
Cylindrical shank
Spiral form
Standard Spiral
Usable length (ULDR)
1
Spot drill with straight shank, diameter 6mm with an overall length of 66mm and flute length of 17mm according to DORMER standard with 150° point angle, solid carbide with TiAlN coating for steel, stainless steel, cast iron, non-ferrous material, super-alloy or hardened material
