Dormer R601110.0 7341677 10mm 90° solid carbide spotting drill for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. 0.3937" cutting diameter, h6 tolerance class, with coating. Ideal for precise spot drilling and chamfering in demanding applications.

Name: Dormer R601110.0 7341677 10mm 90° solid carbide spotting drill for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high
Brand: Dormer Pramet
Price: 164.52 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 7341677

BRAND

Dormer Pramet

SKU

6075826

WEIGHT

0.141 lb

UOM

each

$164.52 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Spotting 90°

Basic Standard

DORMER

Coating

TiAlN

Coating property (CTP)

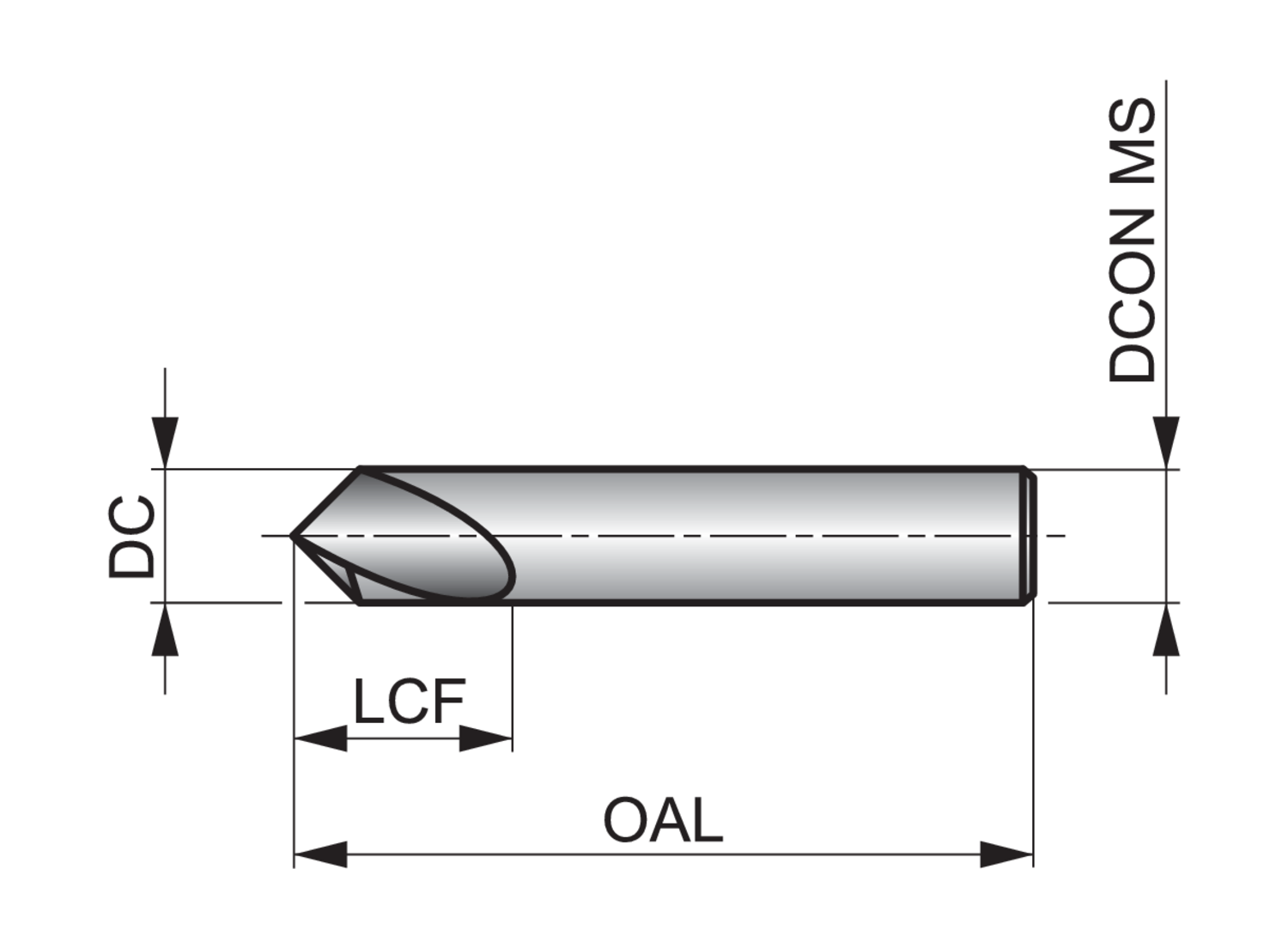

Connection diameter - millimeter (DCON MS)

Cutting diameter - millimeter (DC)

Cutting Diameter Inch Decimal

0.3937

Cutting diameter tolerance class (TCDC)

EDP number

7341677

Hand (Cutting direction)

Right

Length chip flute - inch (LCF)

0.9843

Length chip flute - millimeter (LCF)

Material

Carbide

MID number

7341677

Ordering code ANSI

R601110.0

Overall length - inch (OAL)

2.7559

Overall length - millimeter (OAL)

Point Angle (SIG)

Shank

Cylindrical shank DIN 6535 HA

Spiral form

Standard Spiral

Usable length (ULDR)

Dormer’s R6011 solid carbide, high performance spotting drill will produce high quality and accurate holes (H9 hole tolerance) even when operating at high speeds and feeds.

The titanium aluminium nitride coating greatly improves performance when drilling harder materials and also extends the life of the tool, whilst the 90 degree point angle helps with self-centering for an accurately located hole and also reduces the push force required.

With a point angle designed to provide precise chamfering to accommodate standard screws, R6011 carbide spotting drills are manufactured from premium carbide and can be used to drill a wide range of materials including steels, stainless steels and aluminium
