Image for Illustration purposes only. Actual product may vary

Dormer B1011.1/4 5986336 machine reamer with 1-1/4" cutting diameter, 10 flutes, and MK 3 Morse taper shank. Cobalt High Speed Steel (HSS-E) construction for reaming cast iron, non-ferrous metals, and steel. Manufactured to BS 328 standard.

Name: Dormer B1011.1/4 5986336 machine reamer with 1-1/4" cutting diameter, 10 flutes, and MK 3 Morse taper shank. Cobalt High Speed Steel (HSS-E) construct
Brand: Dormer Pramet
Price: 282.03 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5986336

BRAND

Dormer Pramet

SKU

6075929

WEIGHT

2.557 lb

UOM

each

$282.03 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Achievable hole tolerance (TCHA)

Basic Standard

BS 328

Coating

Bright/ST

Connection size code machine side (CZC MS)

MK 3

Cutting diameter - fractional inch (DC)

1.1/4

Cutting diameter - inch (DC)

1.25

Cutting diameter - millimeter (DC)

31.75

EDP number

181461

Flute count (NOF)

Hand (Cutting direction)

Right

Length chip flute - millimeter (LCF)

133

Material

HSS-E

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

MID number

5986336

Ordering code ANSI

B1011.1/4

Overall length - inch (OAL)

10.2362

Overall length - millimeter (OAL)

260

Shank

Morse Taper Shank

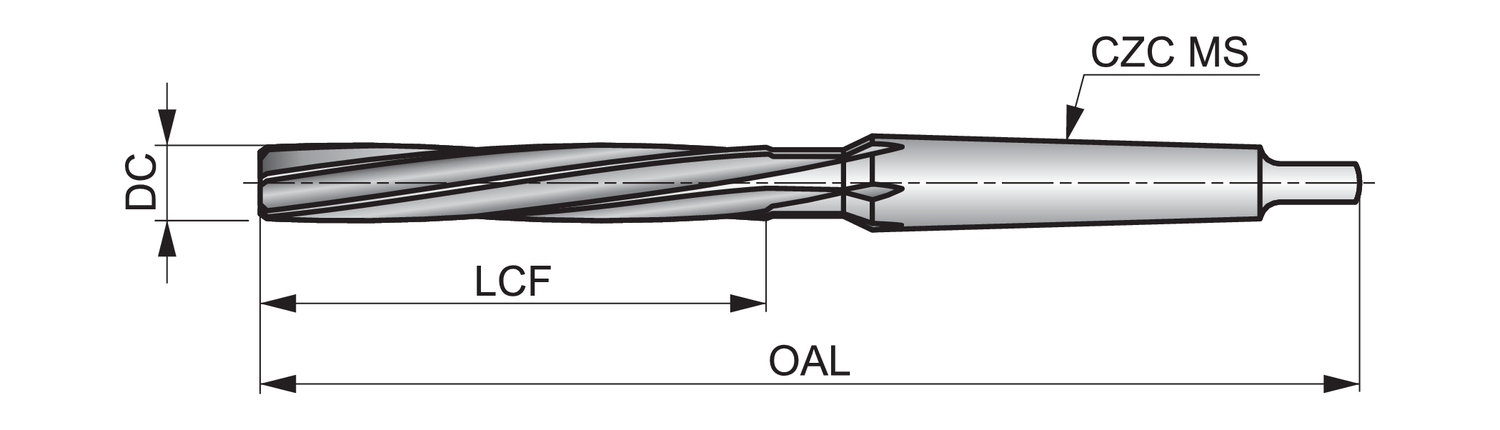

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 31.75mm (1.1/4") with an overall length of 260mm and a flute length of 133mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
