Dormer B12122.0 5986442 Morse Taper Shank Bridge Reamer DIN 311 4FL 22.00 mm
MODEL 5986442
$259.93 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

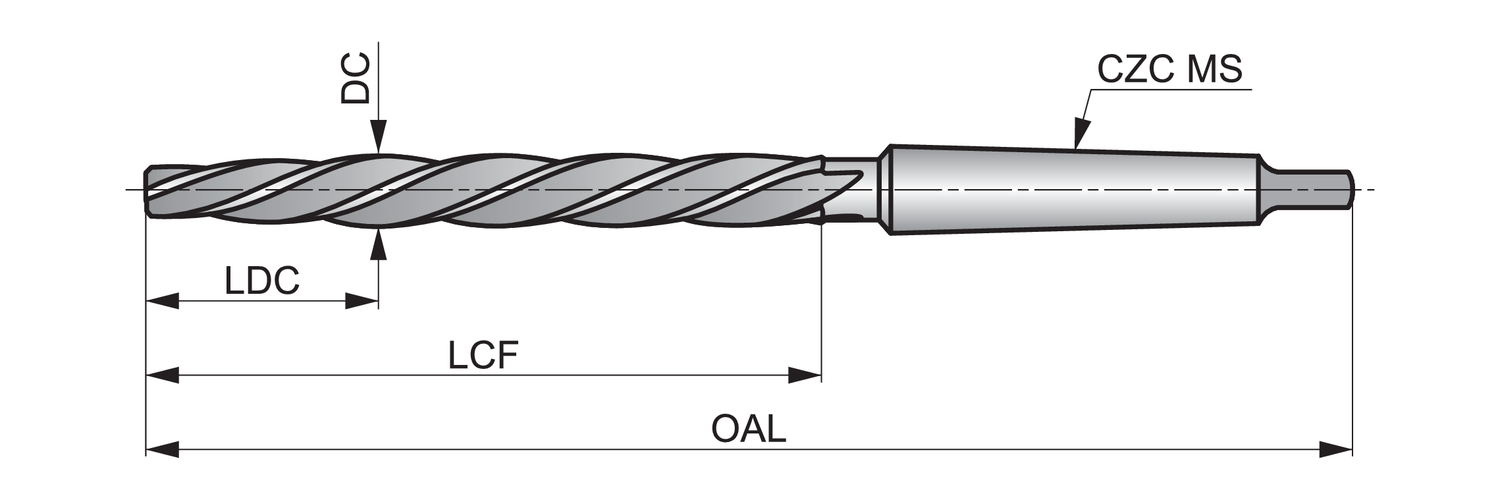

Achievable hole tolerance (TCHA)
k11
Basic Standard
DIN 311
Coating
Bright/ST
Connection size code machine side (CZC MS)
MK 3
Cutting diameter - inch (DC)
0.8661
Cutting diameter - millimeter (DC)
22
EDP number
49143
Flute count (NOF)
4
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
165
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986442
Ordering code ANSI
B12122.0
Overall length - inch (OAL)
11.063
Overall length - millimeter (OAL)
281
Shank
Morse Taper Shank
Bridge reamer with left hand fast spiral flutes and a Morse taper shank, nominal diameter 22.00mm with an overall length of 281mm, a flute length of 165mm and 66mm starting taper (1:10), according to DIN 311 standard for correcting misaligned holes in steel building structures within k11 tolerance, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
