Dormer B12211/16 5986608 machine reamer, 11/16" diameter, High Speed Steel (HSS), 5 left-hand helical flutes, ANSI standard. Bronze straight car reamer for non-ferrous metals, steel, and cast steel. 1/2" connection diameter.
MODEL 5986449
$145.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ANSI
Coating
ST/Bronze

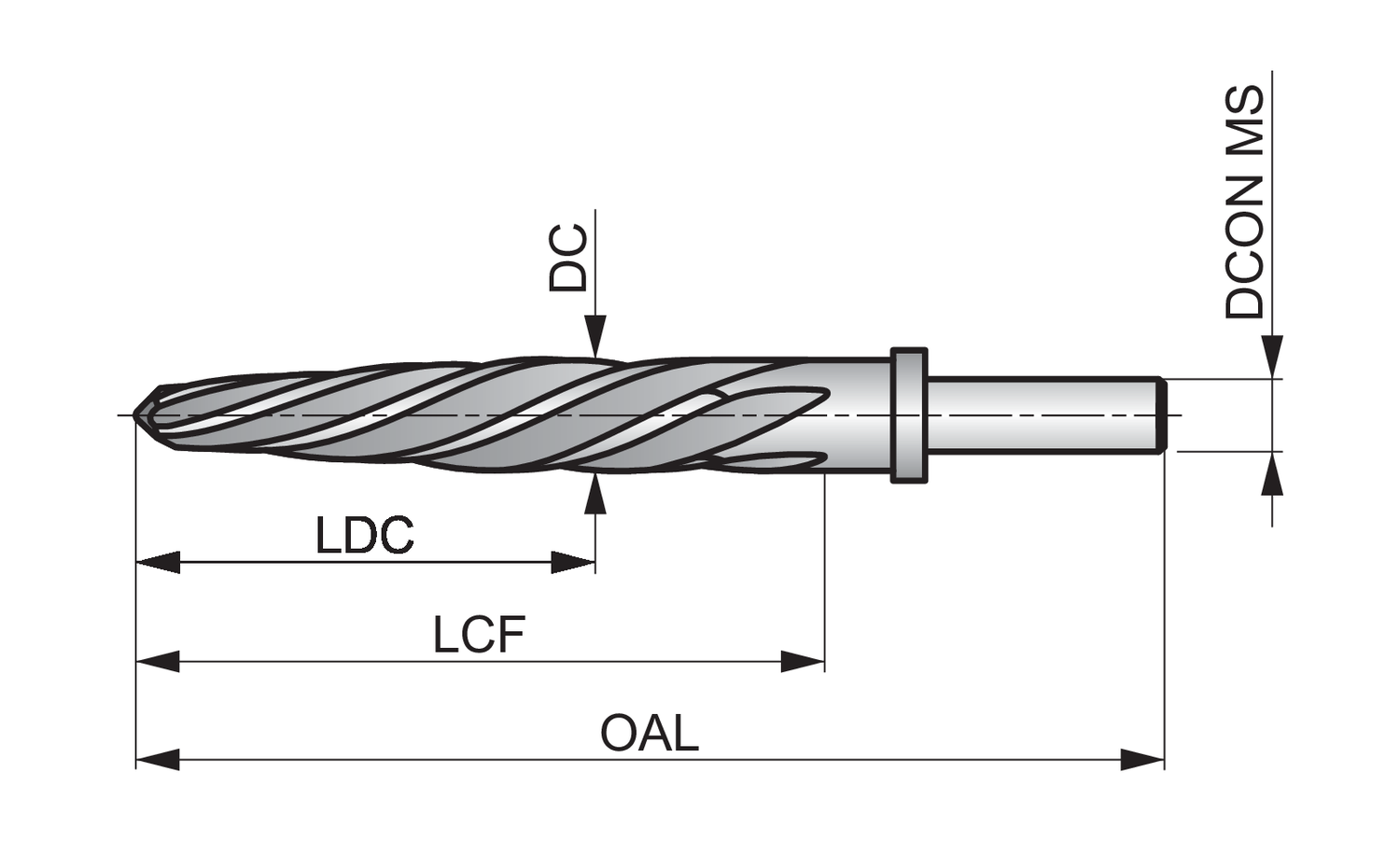

Connection diameter - fractional inch (DCON MS)
1/2
Connection diameter - inch (DCON MS)
0.5
Connection diameter - millimeter (DCON MS)
12.7
Cutting diameter - fractional inch (DC)
11/16
Cutting diameter - inch (DC)
0.6875
Cutting diameter - millimeter (DC)
17.46
EDP number
252352
Flute count (NOF)
5
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
4.1/4
Length chip flute - inch (LCF)
4.25
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5986608
Ordering code ANSI
B1221.1/16
Overall length - fractional inch (OAL)
6.3/8
Overall length - inch (OAL)
6.375
Overall length - millimeter (OAL)
161.93
Shank
Cylindrical shank
Car reamer with left hand slow spiral flutes and a reduced Tri-flats shank, nominal diameter 1.0625" (1.1/16") with an overall length of 6.7/8", a flute length of 4.1/2" and 3.7/8" starting taper, according to ANSI standard for enlarging holes or correcting misalignments, HSS with steam tempered-bronze finish for machining free machining and plain carbon steel, copper or copper alloys.
