Dormer B1701.49 5986223 Machine Centesimal Reamer B DIN 212 3FL 1.49 mm
MODEL 5986223
$44.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
0.95-5.50mm 0, +0.004 5.51-12.0mm 0, +0.005
Basic Standard
DIN 212

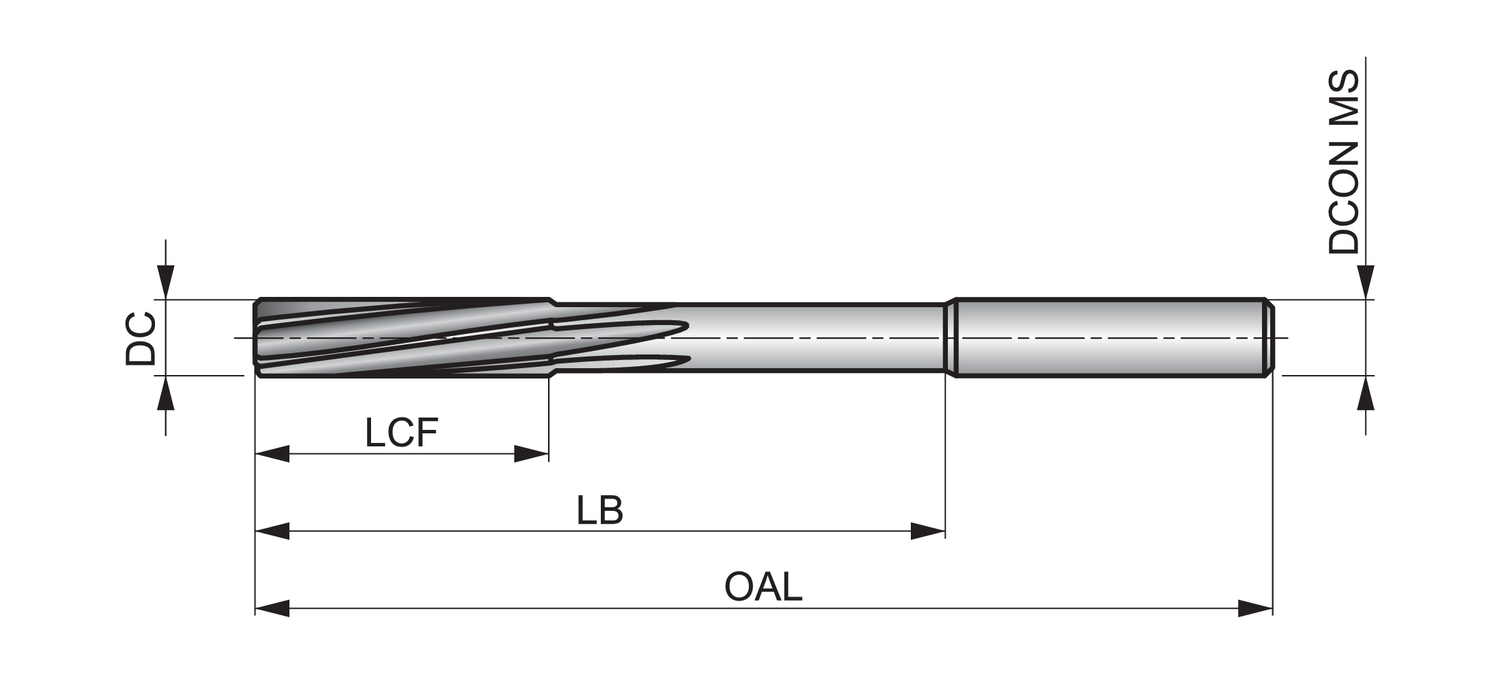

Body length - millimeter (LB)
18
Coating
Bright
Connection diameter - inch (DCON MS)
0.0591
Connection diameter - millimeter (DCON MS)
1.5
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter - inch (DC)
0.0587
Cutting diameter - millimeter (DC)
1.49
EDP number
128459
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
8
Material
HSS-E
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986223
Ordering code ANSI
B1701.49
Overall length - inch (OAL)
1.5748
Overall length - millimeter (OAL)
40
Shank
Cylindrical shank
Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 1.49mm with an overall length of 40mm, a flute length of 8mm and 18mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.004mm to produce holes within diameter-tolerance 1.5N7, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
