Dormer B17011.99 5986933 Machine Centesimal Reamer B DIN 212 6FL 11.99 mm
MODEL 5986933
$86.49 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
0.95-5.50mm 0, +0.004 5.51-12.0mm 0, +0.005
Basic Standard
DIN 212

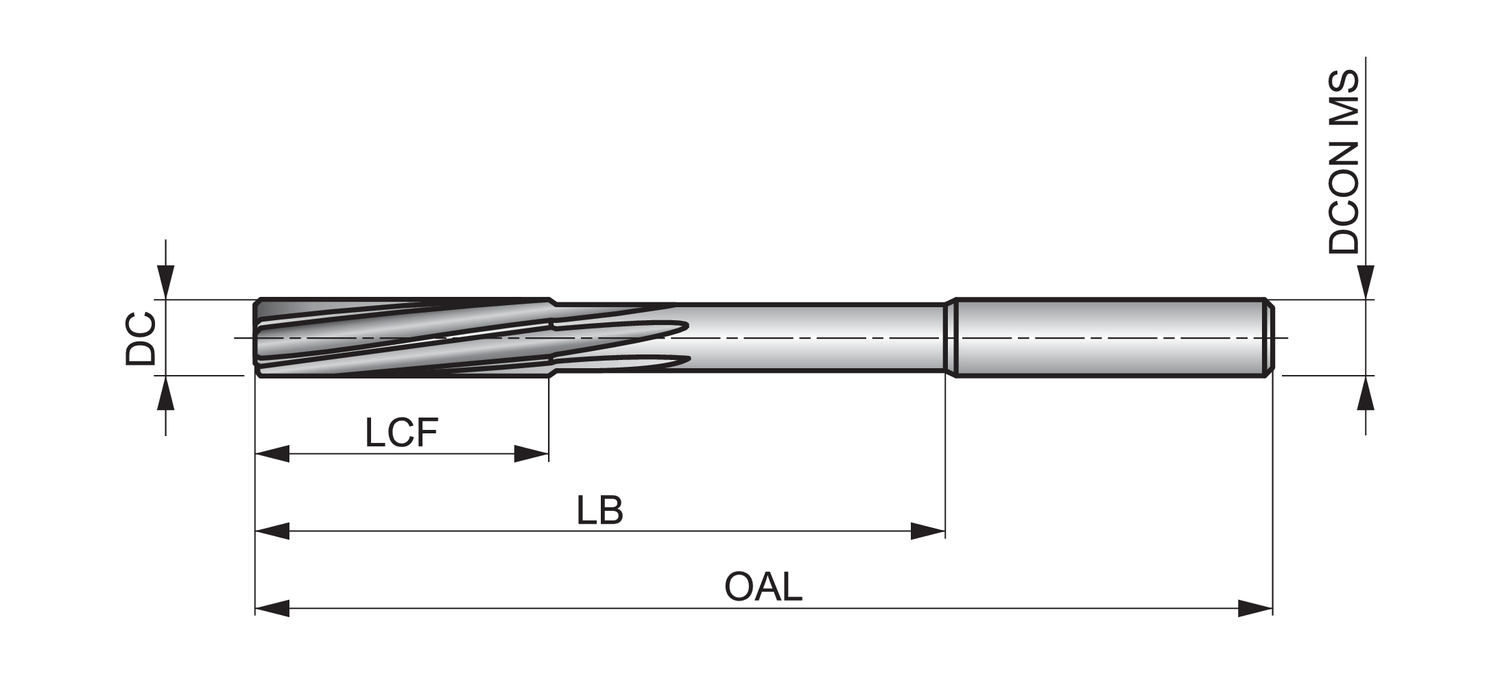

Body length - millimeter (LB)
105
Coating
Bright
Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter - inch (DC)
0.472
Cutting diameter - millimeter (DC)
11.99
EDP number
130872
Flute count (NOF)
6
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
44
Material
HSS-E
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986933
Ordering code ANSI
B17011.99
Overall length - inch (OAL)
5.9449
Overall length - millimeter (OAL)
151
Shank
Cylindrical shank
Centesimal reamer with left hand slow spiral flutes and a cylindrical shank, diameter 11.99mm with an overall length of 151mm, a flute length of 44mm and 105mm reach with neck relief, according to DIN 212 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 12M6, 12M7 or 12M8, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
