Dormer B3011/8 5986384 Hand Taper Pin Reamer 4FL 1/8 inch
MODEL 5986384
$78.03 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
BS 328

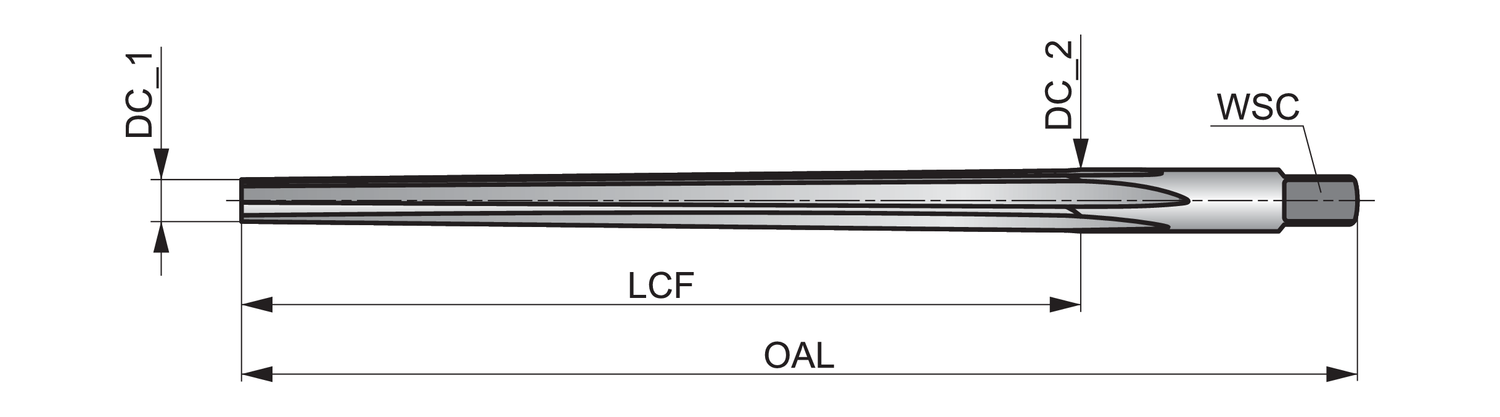

Clamping width - inch
0.0984
Clamping width - millimeter (WSC)
2.5
Coating
Bright/ST
Connection diameter - inch (DCON MS)
0.1272
Connection diameter - millimeter (DCON MS)
3.23
Cutting diameter step - millimeter
2.3
EDP number
182314
Flute count (NOF)
4
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
44
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986384
Nominal diameter
1/8
Ordering code ANSI
B3011/8
Overall length - inch (OAL)
2.7559
Overall length - millimeter (OAL)
70
Shank
Cylindrical shank with Square
Surface treatement
Steam Tempered
Taper gradient - millimeter (Rate of taper)
0.0208
Taper pin hand reamer with straight flutes and a square drive, small end diameter 2.30mm with an overall length of 70mm and a flute length of 44mm 3.23mm large end diameter, according to BS 328 standard for reaming pin holes with a 1:48 taper into which 1/8" taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
