Dormer B9011/8 5986444 Machine Reamer 4FL 1/8 inch
MODEL 5986444
$35.44 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
H7
Basic Standard
BS 328
Coating
Bright/ST

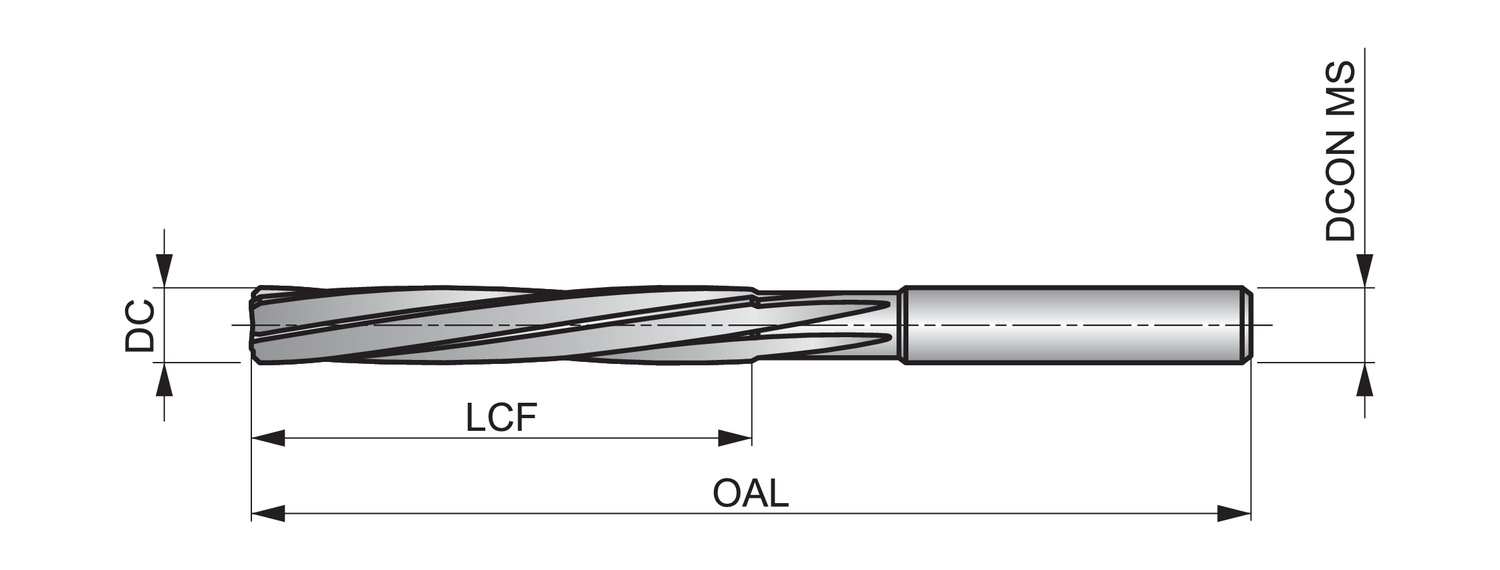

Connection diameter - inch (DCON MS)
0.1252
Connection diameter - millimeter (DCON MS)
3.18
Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - inch (DC)
0.125
Cutting diameter - millimeter (DC)
3.18
EDP number
180860
Flute count (NOF)
4
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
33
Material
HSS-E
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986444
Ordering code ANSI
B9011/8
Overall length - inch (OAL)
2.5984
Overall length - millimeter (OAL)
66
Shank
Cylindrical shank
Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 3.18mm (1/8") with an overall length of 66mm and a flute length of 33mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
