Dormer B95210.0 5986908 Hand Taper Pin Reamer 6FL 10.00 mm
MODEL 5986908
$147.12 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DIN 9
Clamping width - inch
0.3937
Clamping width - millimeter (WSC)
10
Coating
Bright
Connection diameter - inch (DCON MS)
0.4921
Connection diameter - millimeter (DCON MS)
12.5
Connection diameter tolerance machine side (TCDCONMS)
h11
Cutting diameter step - millimeter
9.9
EDP number
53782
Flute count (NOF)
6
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
175
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986908
Nominal diameter
10.0
Ordering code ANSI
B95210.0
Overall length - inch (OAL)
8.4646
Overall length - millimeter (OAL)
215
Shank
Cylindrical shank with Square
Surface treatement
Original surface
Taper gradient - millimeter (Rate of taper)
0.02

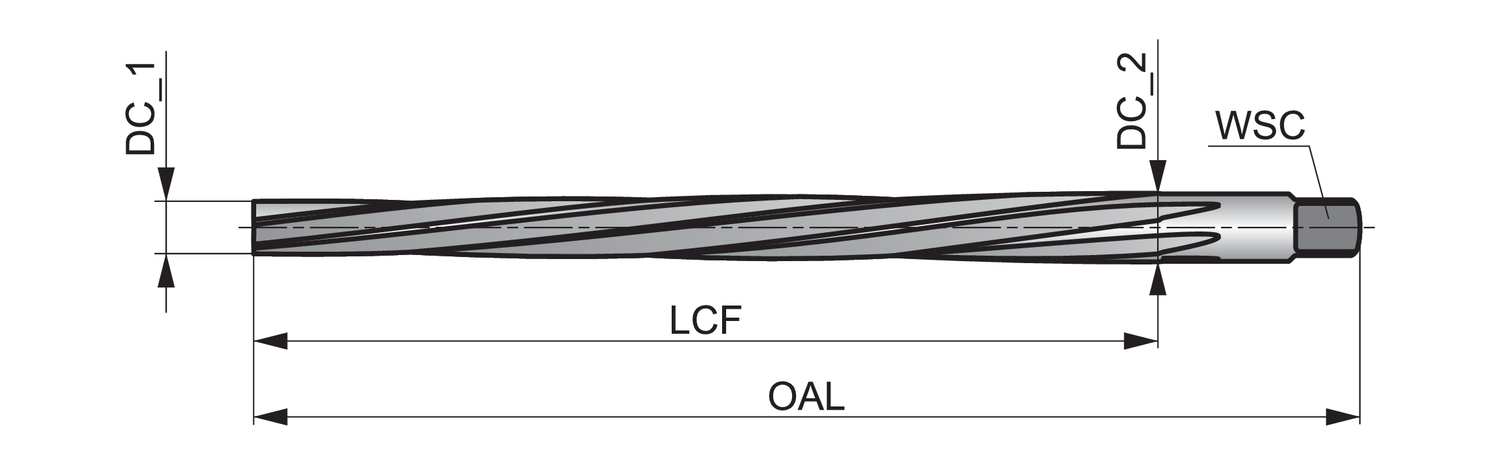

Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 9.90mm with an overall length of 215mm, a flute length of 175mm and 13.40mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 10.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
