Dormer B95413.0 5986694 machine reamer for conical pin, 13.00mm diameter, left hand helix 45°, 3 flutes, HSS-E cobalt high speed steel, DIN 2180 standard. Suitable for K (cast iron), N (non-ferrous metals), and P (steel and cast steel) material applications. MK 2 connection size.
MODEL 5986694
$254.76 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 2180
Coating
Bright
Connection size code machine side (CZC MS)
MK 2
Cutting diameter step - millimeter
12.86
EDP number
53997
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
194
Material
HSS-E
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986694
Nominal diameter
13
Ordering code ANSI
B95413.0
Overall length - inch (OAL)
11.6142
Overall length - millimeter (OAL)
295
Shank
Morse Taper Shank
Taper gradient - millimeter (Rate of taper)
0.02

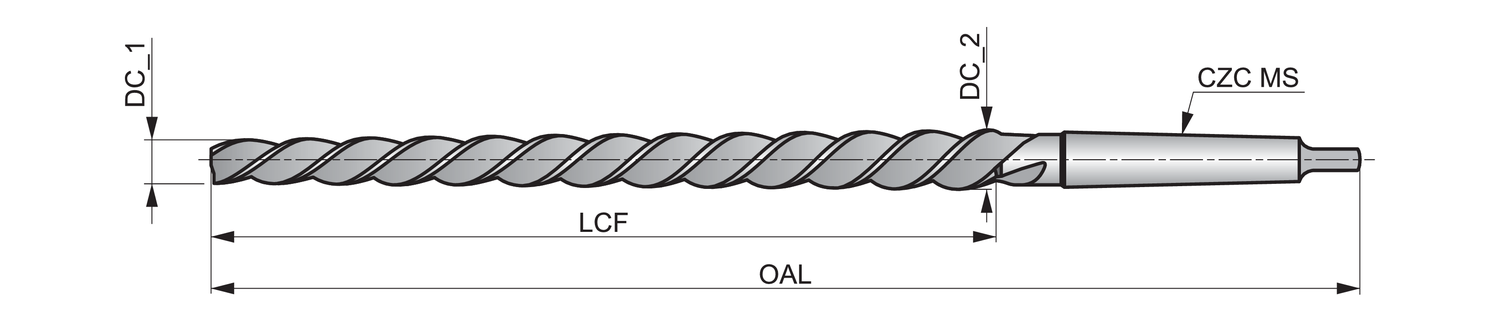

Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 12.86mm with an overall length of 295mm, a flute length of 194mm and 16.74mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 13.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
