Dormer B9548.0 5986715 machine reamer for conical pin, 8.00mm diameter, left hand helix 45°, 3 flutes, Cobalt High Speed Steel (HSS-E), DIN 2180 standard. Suitable for K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel. MK 1 shank.
MODEL 5986715
$163.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 2180
Coating
Bright
Connection size code machine side (CZC MS)
MK 1
Cutting diameter step - millimeter
7.9
EDP number
54079
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
145
Material
HSS-E
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986715
Nominal diameter
8
Ordering code ANSI
B9548.0
Overall length - inch (OAL)
8.937
Overall length - millimeter (OAL)
227
Shank
Morse Taper Shank
Taper gradient - millimeter (Rate of taper)
0.02

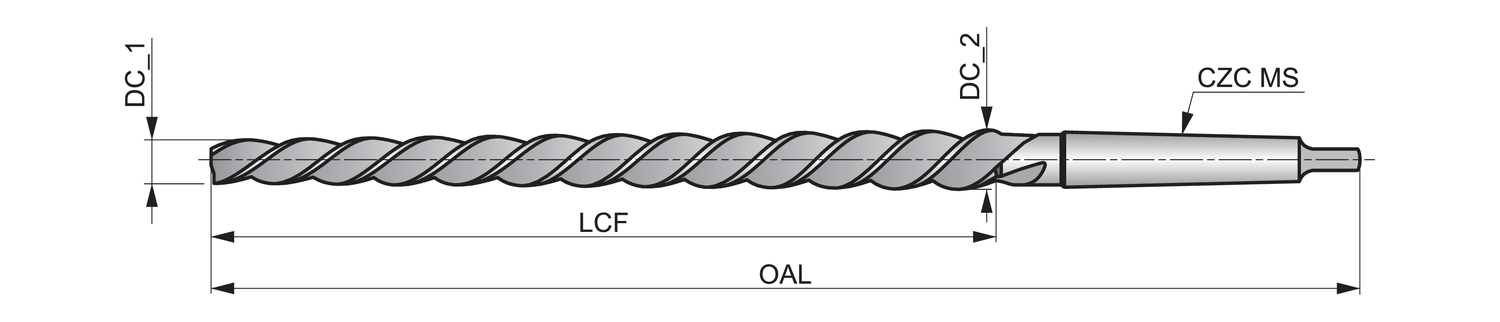

Taper pin machine reamer with left hand fast spiral flutes and a Morse taper shank, small end diameter 7.90mm with an overall length of 227mm, a flute length of 145mm and 10.80mm large end diameter, according to DIN 2180 standard for reaming pin holes with a 1:50 taper into which 8.00mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
