Dormer G1358.0 5973356 Countersink - 60° 3FL 8.00 mm
MODEL 5973356
$24.87 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 60°
Basic Standard
DIN 334 C
Coating
Bright

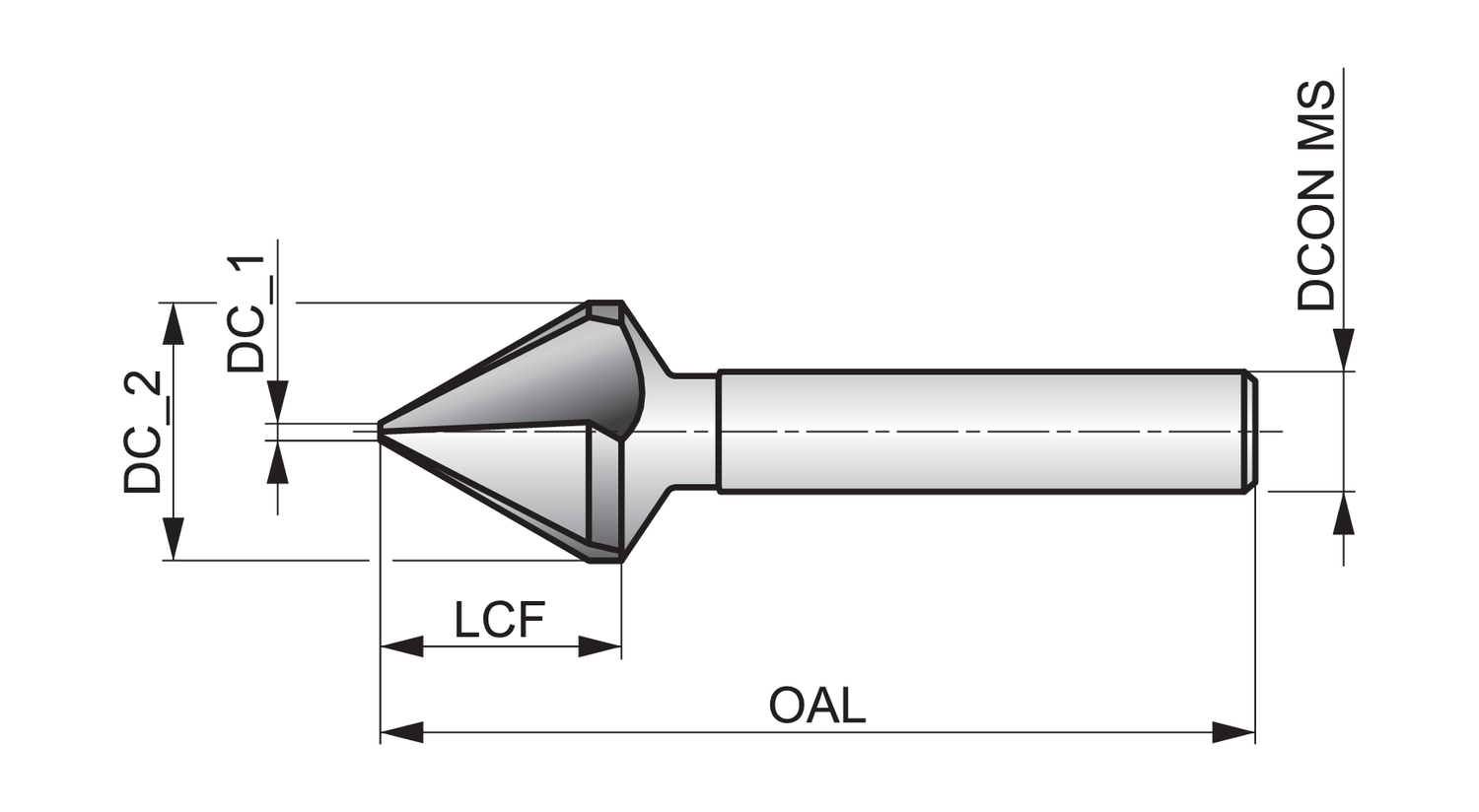

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
2
EDP number
108499
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
8.5
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5973356
Ordering code ANSI
G1358.0
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Shank
Cylindrical shank
Countersink with 3-flutes, 60° chamfering angle, maximum diameter 8.00mm with an overall length of 50mm and a head length of 8.5mm and 6mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 2.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, cast aluminium and copper or copper alloys.
