Dormer G1426.3 5973157 Countersink with extra radial relief - 90° 3FL 6.30 mm
MODEL 5973157
$29.58 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 C
Coating
Bright

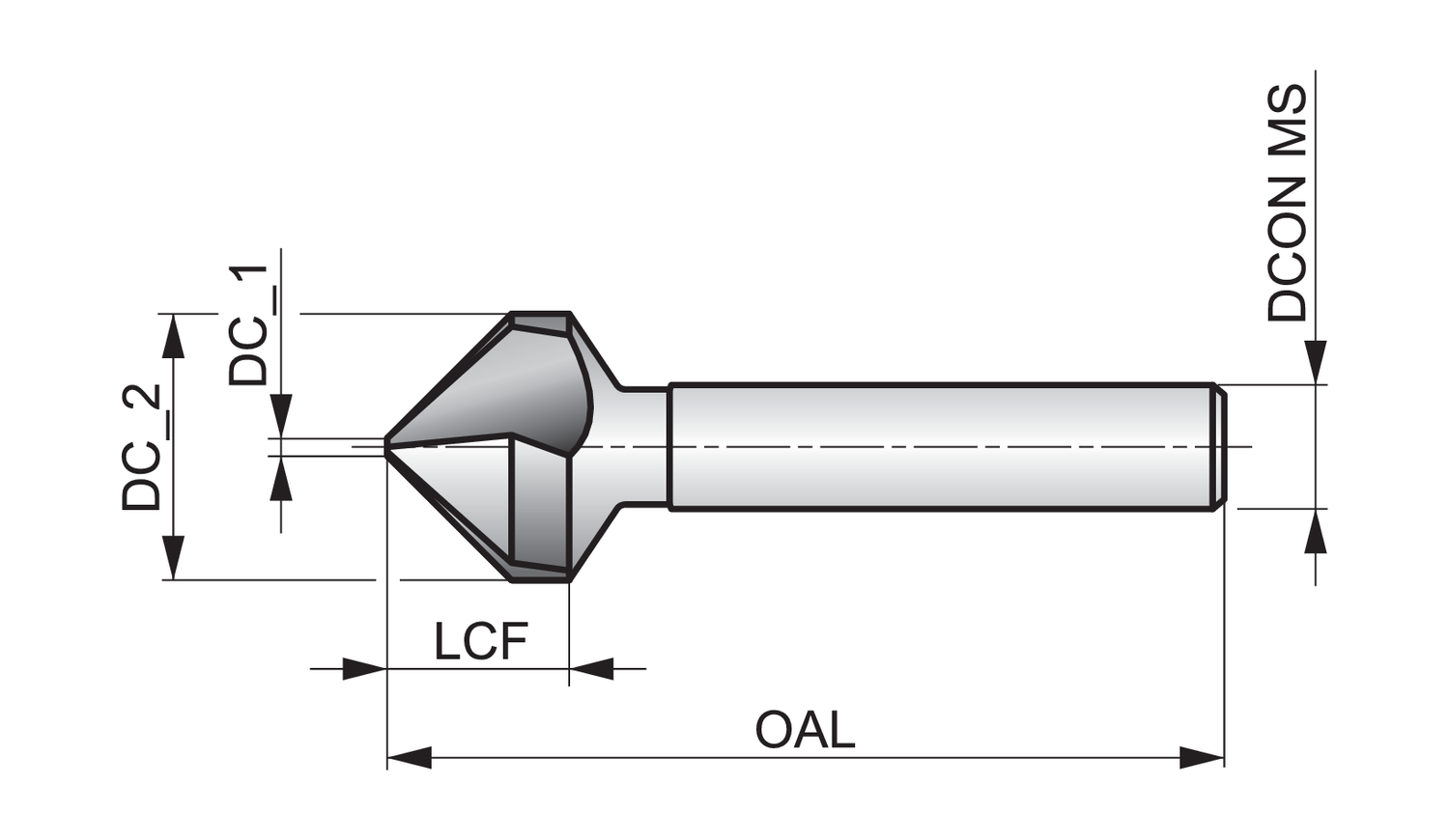

Connection diameter - inch (DCON MS)
0.1969
Connection diameter - millimeter (DCON MS)
5
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
1.5
EDP number
149270
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
5.5
Material
HSS
Material application
M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5973157
Ordering code ANSI
G1426.3
Overall length - inch (OAL)
1.7717
Overall length - millimeter (OAL)
45
Point Angle (SIG)
90
Shank
Cylindrical shank
Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 5.5mm and 5mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, ferritic stainless steel, wrought and copper or copper alloys and polymers.
