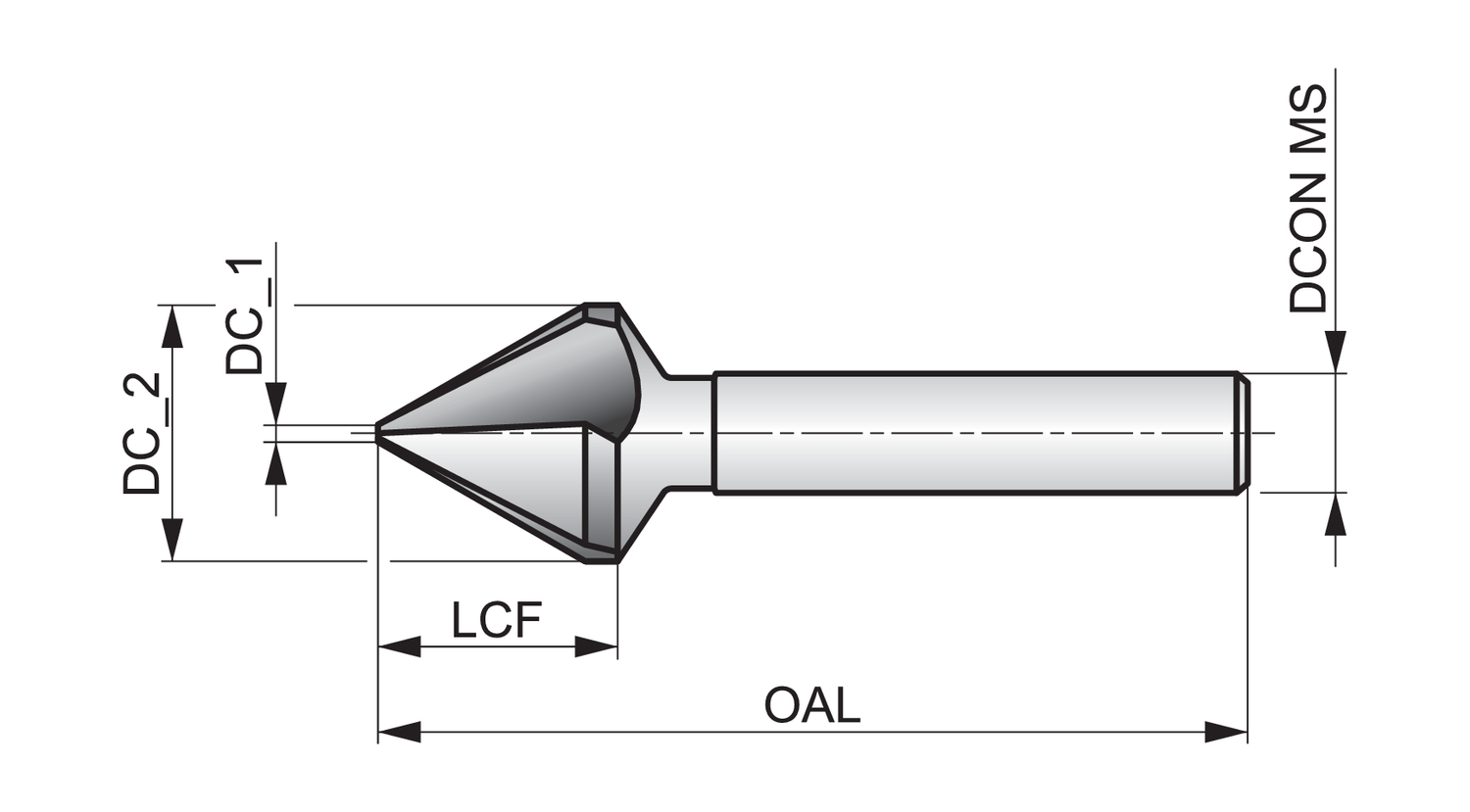

Image for Illustration purposes only. Actual product may vary
Dormer G33510.0 5972759 Countersink - 60° 3FL 10.00 mm
MODEL 5972759
$42.08 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 60°
Basic Standard
DIN 334 C
Coating
TiN
Coating property (CTP)
1
Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
2.5
EDP number
149560
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
7.6
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5972759
Ordering code ANSI
G33510.0
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Point Angle (SIG)
60
Shank
Cylindrical shank
Countersink with 3-flutes, 60° chamfering angle, maximum diameter 10.00mm with an overall length of 50mm and a head length of 7.6mm and 6mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 2.50mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
