Dormer G3358.0 5972782 60° 3-flute countersink, 8.00mm cutting diameter, High Speed Steel (HSS), DIN 334 C standard. Suitable for cast iron, non-ferrous metals, and steel/cast steel. 6mm cylindrical shank with h9 tolerance.

Name: Dormer G3358.0 5972782 60° 3-flute countersink, 8.00mm cutting diameter, High Speed Steel (HSS), DIN 334 C standard. Suitable for cast iron, non-ferro
Brand: Dormer Pramet
Price: 41.7 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5972782

BRAND

Dormer Pramet

SKU

6076708

WEIGHT

0.033 lb

UOM

each

$41.70 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Countersinking 60°

Basic Standard

DIN 334 C

Coating

TiN

Coating property (CTP)

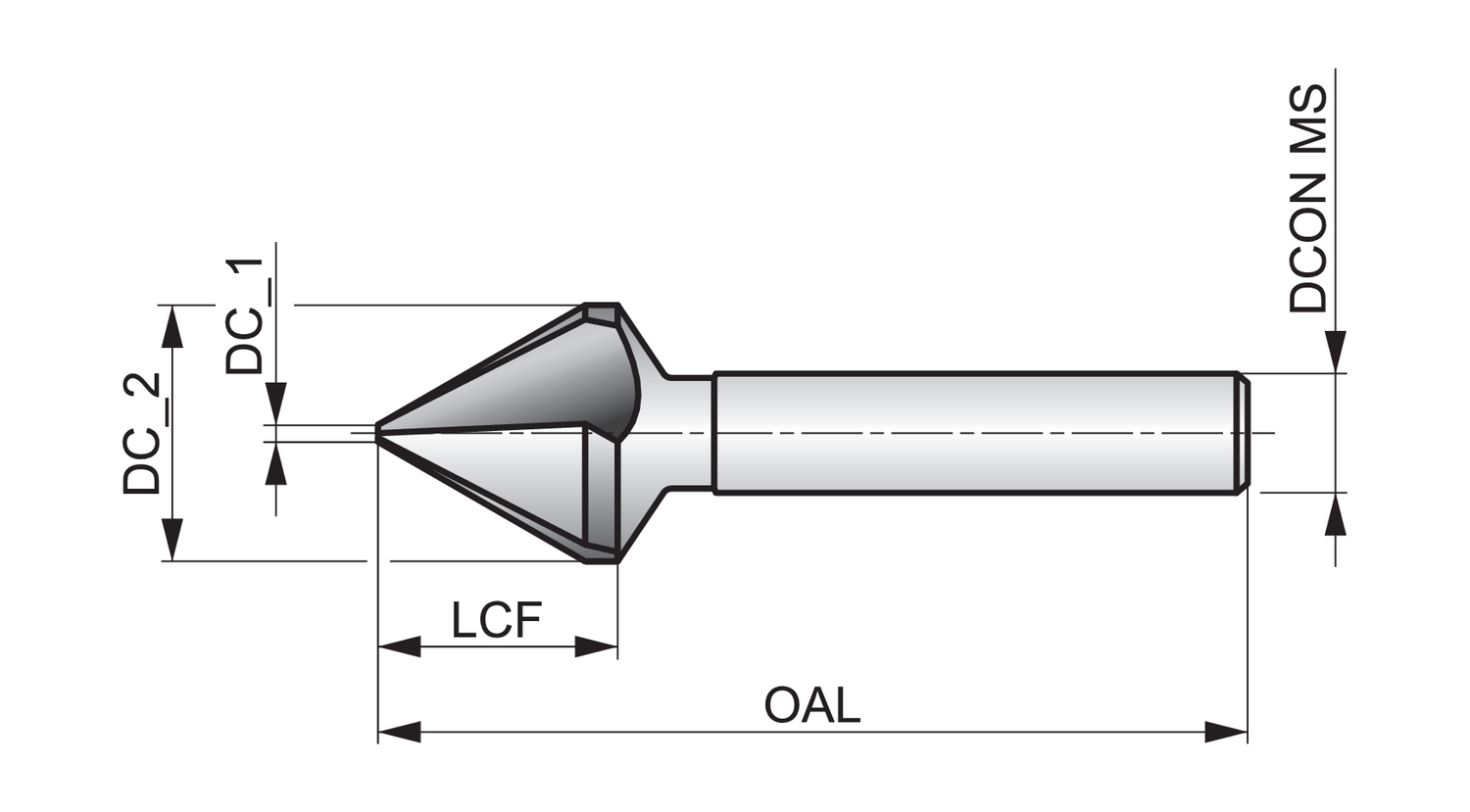

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cutting diameter step - millimeter

EDP number

149553

Flute count (NOF)

Hand (Cutting direction)

Right

Length chip flute - millimeter (LCF)

8.5

Material

HSS

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

MID number

5972782

Ordering code ANSI

G3358.0

Overall length - inch (OAL)

1.9685

Overall length - millimeter (OAL)

Point Angle (SIG)

Shank

Cylindrical shank

Countersink with 3-flutes, 60° chamfering angle, maximum diameter 8.00mm with an overall length of 50mm and a head length of 8.5mm and 6mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 2.00mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
