Dormer G33825.0 5973321 Morse Taper Shank Countersink - 90° 3FL 25.00 mm
MODEL 5973321
$173.04 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 D
Coating
TiN
Coating property (CTP)
1

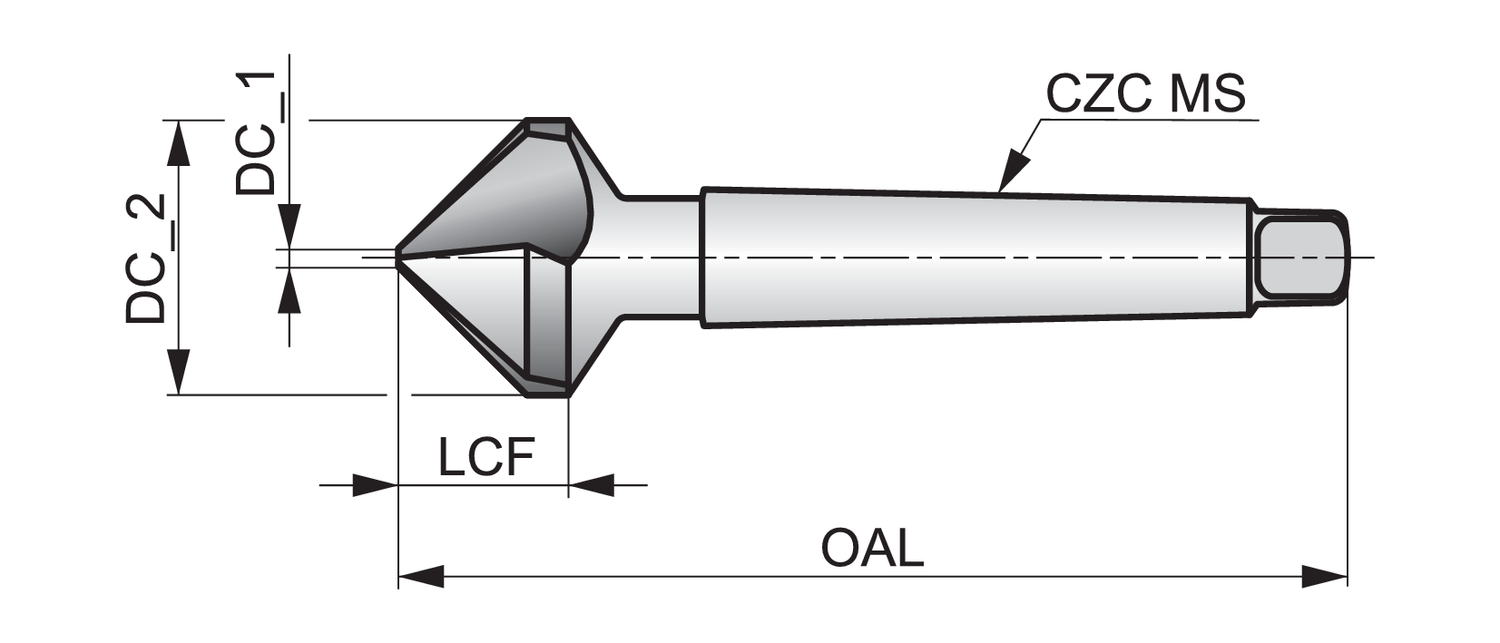

Connection size code machine side (CZC MS)
MK 2
Cutting diameter step - millimeter
3.8
EDP number
109502
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
15.5
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5973321
Ordering code ANSI
G33825.0
Overall length - inch (OAL)
4.1732
Overall length - millimeter (OAL)
106
Point Angle (SIG)
90
Shank
Morse Taper Shank
Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00mm with an overall length of 106mm and a head length of 15.5mm and MT 2 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
