7147793

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer G5066.3 7147793 90° 3-flute HSS countersink with 6.30 mm cutting diameter and Tri-Flat shank. DIN 335 C standard. Suitable for cast iron, non-ferrous metals, and steel/cast steel. 5 mm connection diameter with h9 tolerance.

MODEL 7147793

SKU

6076725

WEIGHT

0.020 lb

UOM

each

$42.76 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Countersinking 90°

Basic Standard

DIN 335 C

Coating

TiAlN

Coating property (CTP)

1

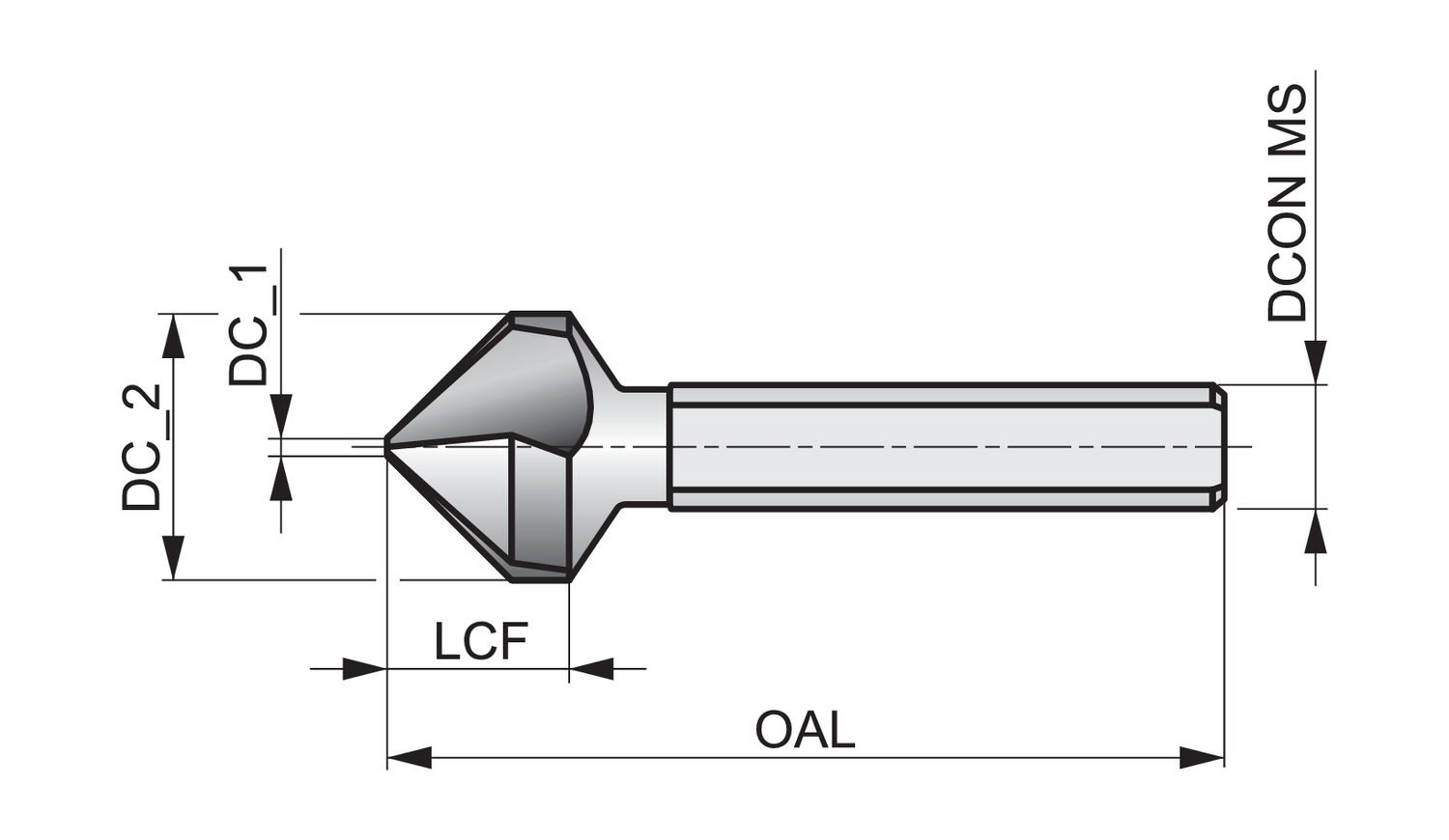

Connection diameter - inch (DCON MS)

0.1969

Connection diameter - millimeter (DCON MS)

5

Connection diameter tolerance machine side (TCDCONMS)

h9

Cutting diameter step - millimeter

1.5

EDP number

47147793

Flute count (NOF)

3

Hand (Cutting direction)

Right

Length chip flute - millimeter (LCF)

5.6

Material

HSS

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

MID number

7147793

Ordering code ANSI

G5066.3

Overall length - inch (OAL)

1.7717

Overall length - millimeter (OAL)

45

Point Angle (SIG)

90

Shank

Cylindrical shank with 3-Flats

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 5.6mm and 5mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys.
