5973339

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer G56012.4 5973339 90° 3-flute HSS countersink, 12.40mm cutting diameter, 8mm shank. DIN 335 C standard. Suitable for cast iron, non-ferrous metals, and steel. Bright finish.

MODEL 5973339

SKU

6076729

WEIGHT

0.057 lb

UOM

each

$65.31 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Returnable: Yes

ApplicationAngleIcon_DICT_SEL

Countersinking 90°

Basic Standard

DIN 335 C

Coating

TiAlN

Coating property (CTP)

1

Connection diameter - inch (DCON MS)

0.315

Connection diameter - millimeter (DCON MS)

8

Connection diameter tolerance machine side (TCDCONMS)

h9

Cutting diameter step - millimeter

2.8

EDP number

109656

Flute count (NOF)

3

Hand (Cutting direction)

Right

Length chip flute - millimeter (LCF)

8.5

Material

HSS

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

MID number

5973339

Ordering code ANSI

G56012.4

Overall length - inch (OAL)

2.2047

Overall length - millimeter (OAL)

56

Point Angle (SIG)

90

Shank

Cylindrical shank

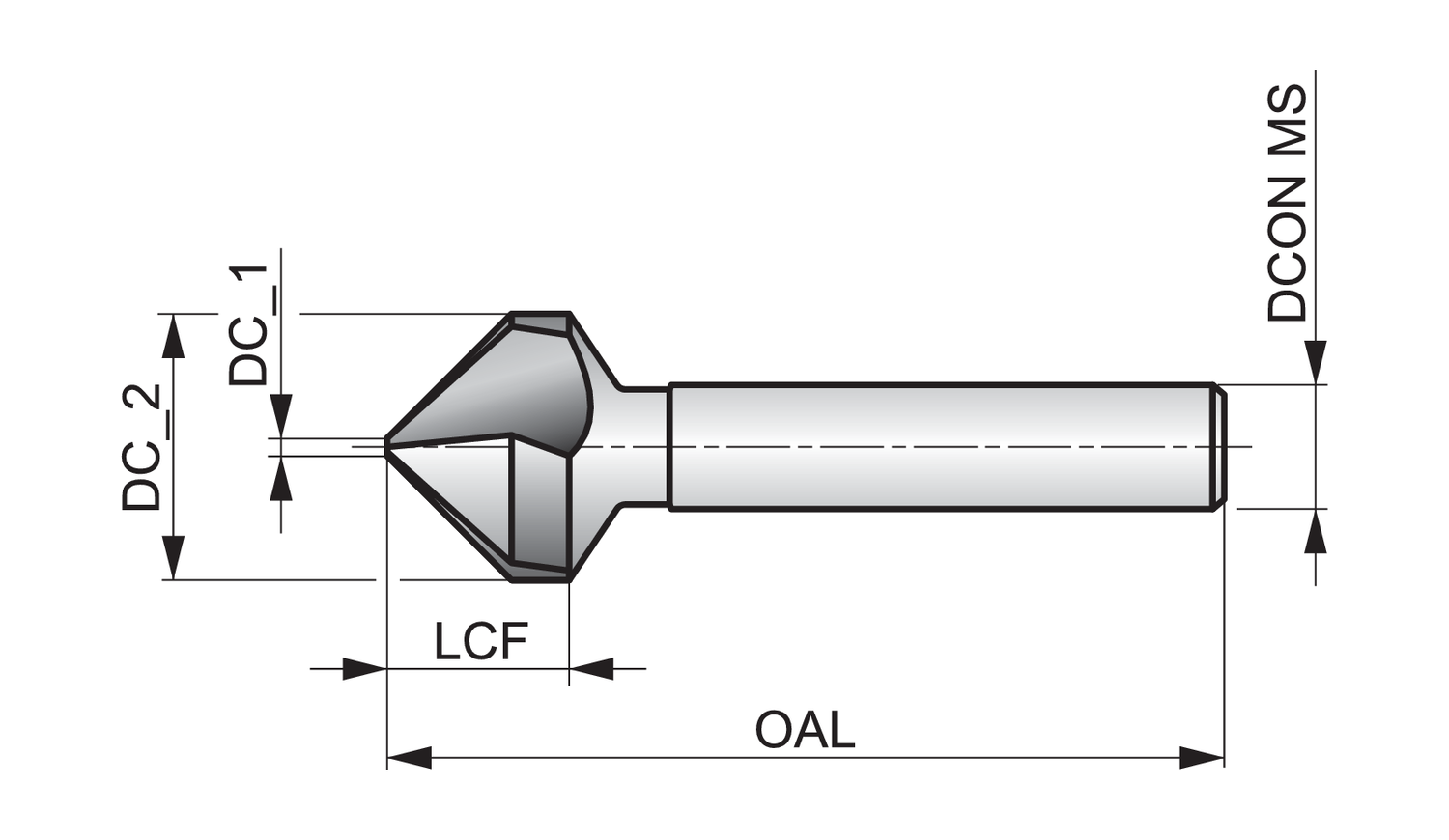

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40mm with an overall length of 56mm and a head length of 8.5mm and 8mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys.
