6381760

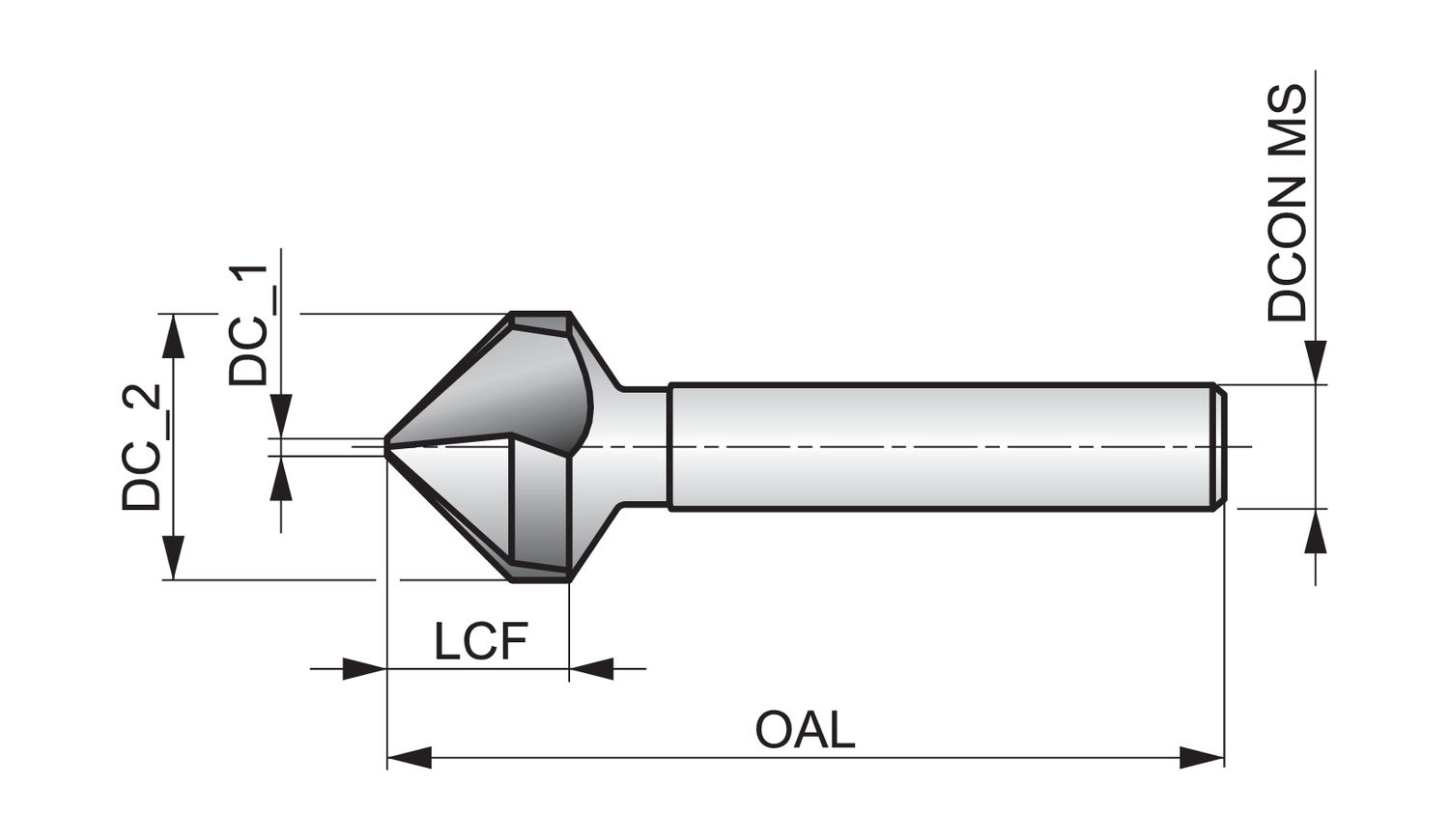

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer G5706.3 6381760 90° 3-flute countersink, 6.30mm cutting diameter, 5mm shank with h9 tolerance. Cobalt High Speed Steel (HSS-E) construction for machining cast iron, stainless steel, and steel. DIN 335 C standard. Coated for enhanced performance.

MODEL 6381760

SKU

6076743

WEIGHT

0.021 lb

UOM

each

$40.91 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

ApplicationAngleIcon_DICT_SEL

Countersinking 90°

Basic Standard

DIN 335 C

Coating

AlTiCN

Coating property (CTP)

1

Connection diameter - inch (DCON MS)

0.1969

Connection diameter - millimeter (DCON MS)

5

Connection diameter tolerance machine side (TCDCONMS)

h9

Cutting diameter step - millimeter

1.5

EDP number

46381760

Flute count (NOF)

3

Hand (Cutting direction)

Right

Length chip flute - millimeter (LCF)

6.5

Material

HSS-E

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel

MID number

6381760

Ordering code ANSI

G5706.3

Overall length - inch (OAL)

1.7717

Overall length - millimeter (OAL)

45

Shank

Cylindrical shank

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 6.5mm and 5mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.50mm, cobalt based HSS-E with standard AlTiCN coating for machining alloy and tool steel, ferritic, martensitic and austenitic stainless steel and grey, malleable, ductile and compacted graphite cast-iron.
