Dormer G5708.3 6381761 Countersink - 90° 3FL 8.30 mm
MODEL 6381761
$36.56 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DIN 335 C
Coating
AlTiCN
Coating property (CTP)
1

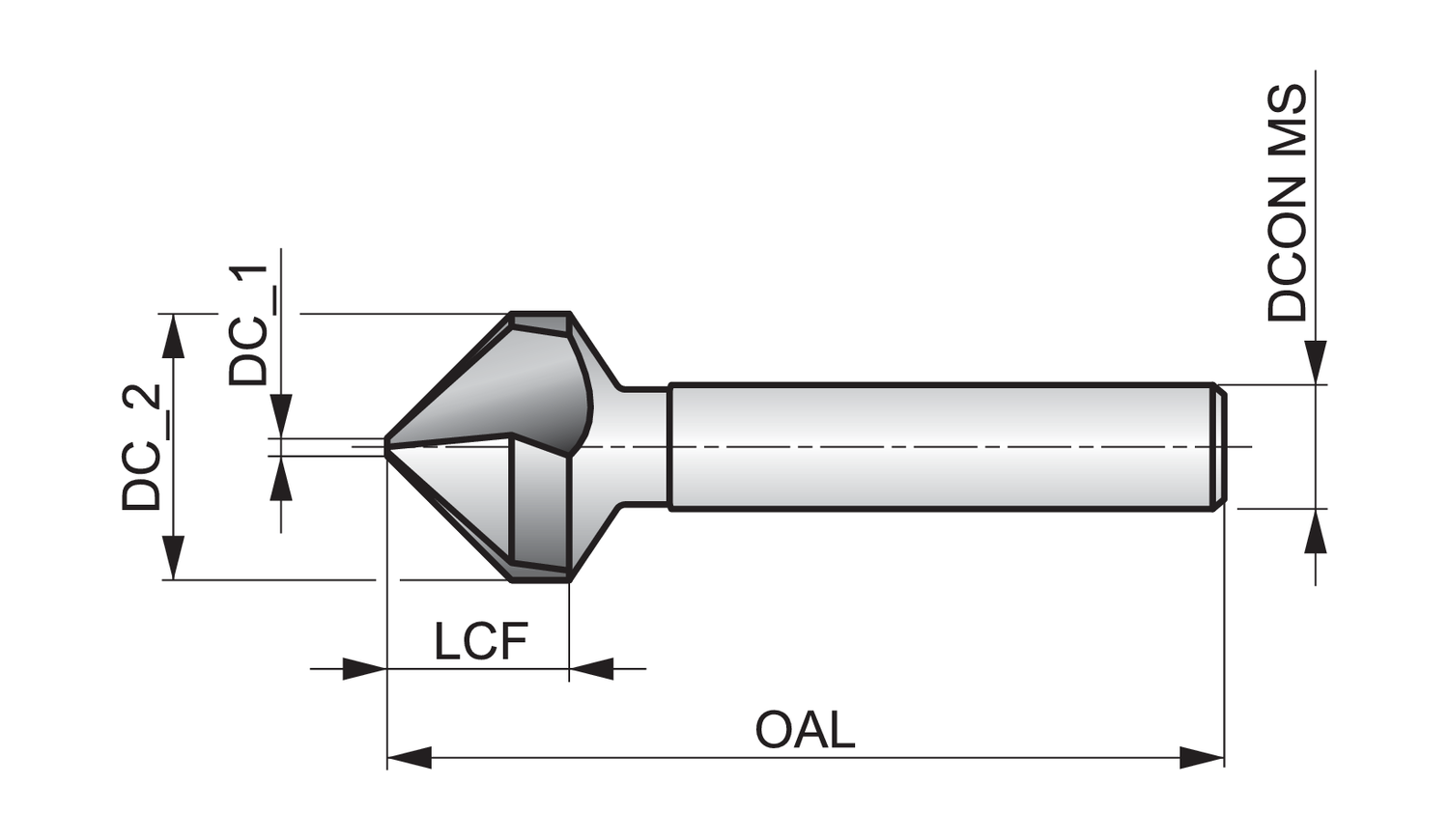

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
2
EDP number
46381761
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
8.2
Material
HSS-E
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel
MID number
6381761
Ordering code ANSI
G5708.3
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Shank
Cylindrical shank
Countersink with 3-flutes, 90° chamfering angle, maximum diameter 8.30mm with an overall length of 50mm and a head length of 8.2mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00mm, cobalt based HSS-E with standard AlTiCN coating for machining alloy and tool steel, ferritic, martensitic and austenitic stainless steel and grey, malleable, ductile and compacted graphite cast-iron.
