Image for Illustration purposes only. Actual product may vary
Dormer G6006.3 6381768 Countersink Extra Long - 90° 3FL 6.30 mm
MODEL 6381768
$59.17 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DORMER
Coating
Bright
Connection diameter - inch (DCON MS)
0.1969
Connection diameter - millimeter (DCON MS)
5
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter step - millimeter
1.3
EDP number
46381768
Flute count (NOF)
3
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
5.6
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
6381768
Ordering code ANSI
G6006.3
Overall length - inch (OAL)
6.063
Overall length - millimeter (OAL)
154
Point Angle (SIG)
90
Shank
Cylindrical shank

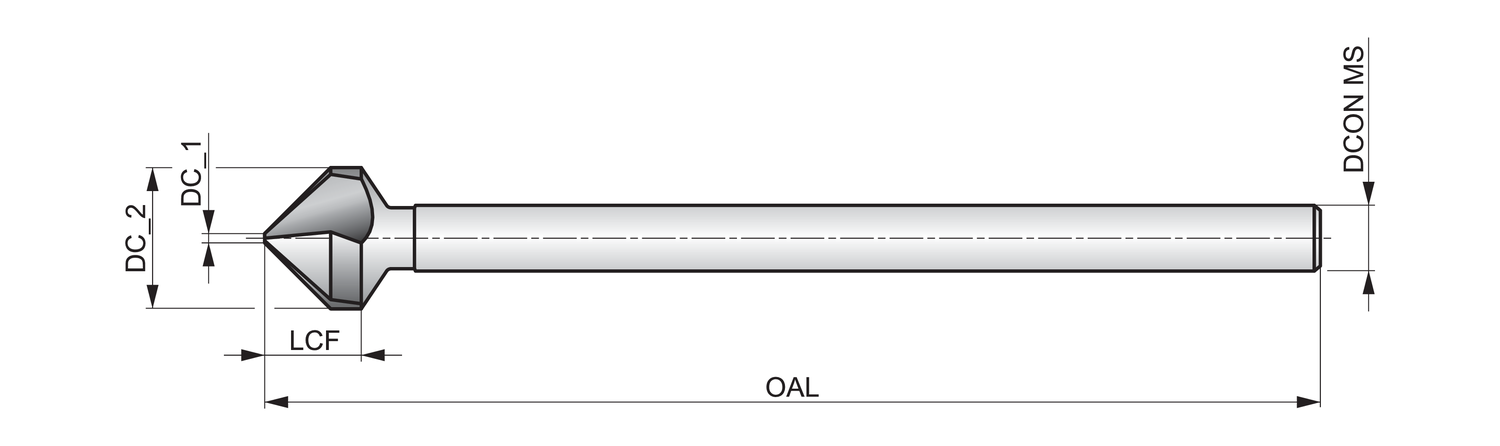

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 6.30mm with an overall length of 154mm and a head length of 5.6mm and 5mm straight extended shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 1.30mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel.
