Image for Illustration purposes only. Actual product may vary
Dormer C12214.0 5984240 End Mill 14.00 mm
MODEL 5984240
$65.86 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

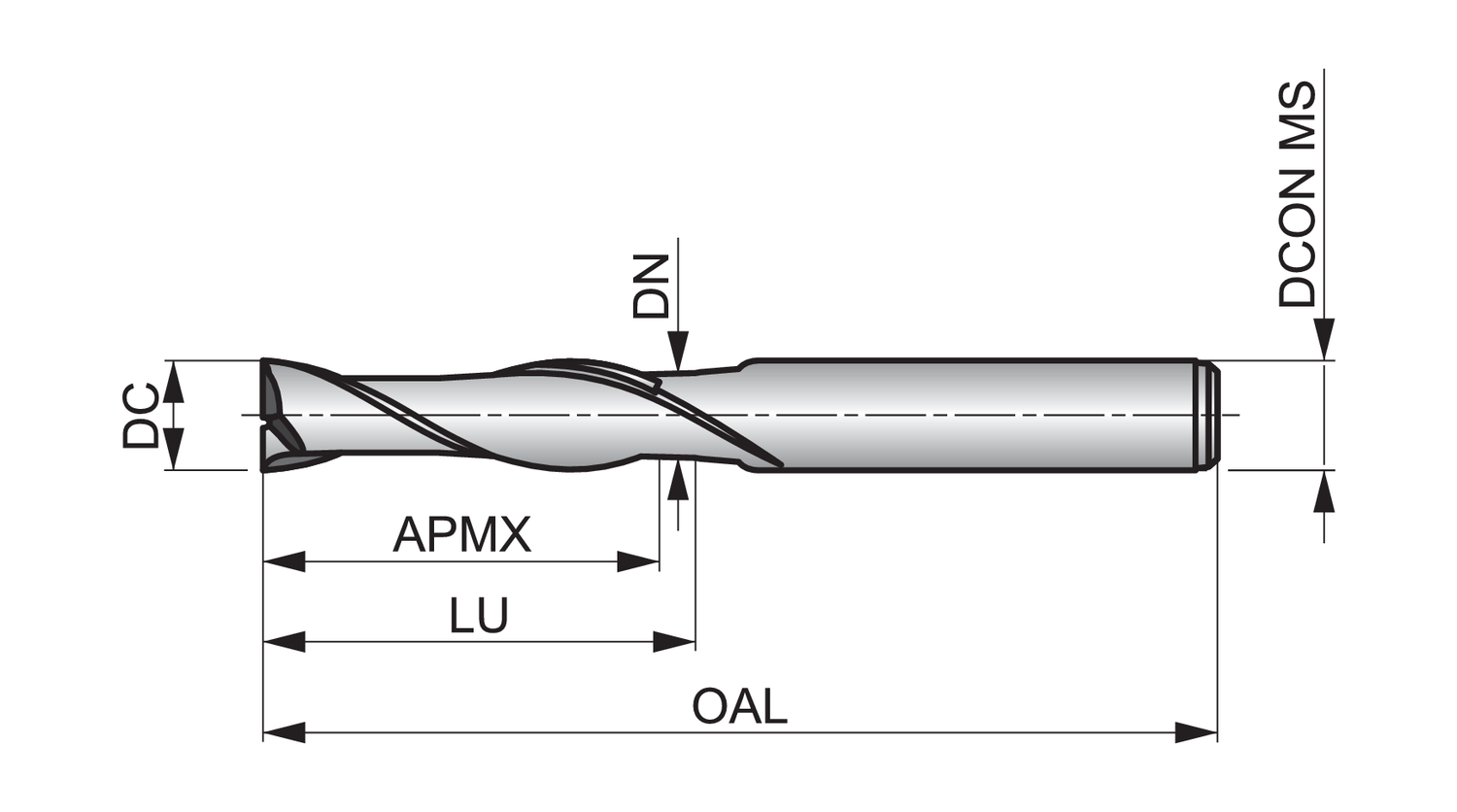

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Cut length
Long
Cutting diameter - inch (DC)
0.5512
Cutting diameter - millimeter (DC)
14
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
2.0472
Depth of cut maximum - millimeter (APMX)
52
EDP number
56431
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HSS-E
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5984240
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C12214.0
Overall length - inch (OAL)
4.9213
Overall length - millimeter (OAL)
125
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
12
Shank
Cylindrical shank DIN 1835A
C122 2 flute milling cutters are very versatile and can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron and the 2 flute design gives high rigidity, making the tools great for milling standard slots.
The bright finish means the tools give clean and accurate results as the workpiece material does not stick to the cutting edges.
Manufactured from High Speed cobalt, the tools have a longer tool life and will give better performance.
C122 milling cutter are long series cutters, designed for machining deep slots in difficult to reach areas
