Dormer C12322.0 5984381 slot drill, 22mm cutting diameter, 2-flute, 30° helix, powder metallurgy cobalt HSS-E-PM, DIN 844 K standard. 20mm shank with h6 tolerance, 38mm max depth of cut. For non-ferrous metals, steel, cast steel, and high-temperature alloys.

Name: Dormer C12322.0 5984381 slot drill, 22mm cutting diameter, 2-flute, 30° helix, powder metallurgy cobalt HSS-E-PM, DIN 844 K standard. 20mm shank with
Brand: Dormer Pramet
Price: 125.03 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5984381

BRAND

Dormer Pramet

SKU

6076844

WEIGHT

0.487 lb

UOM

each

$125.03 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DIN 844 K

Coating

Bright

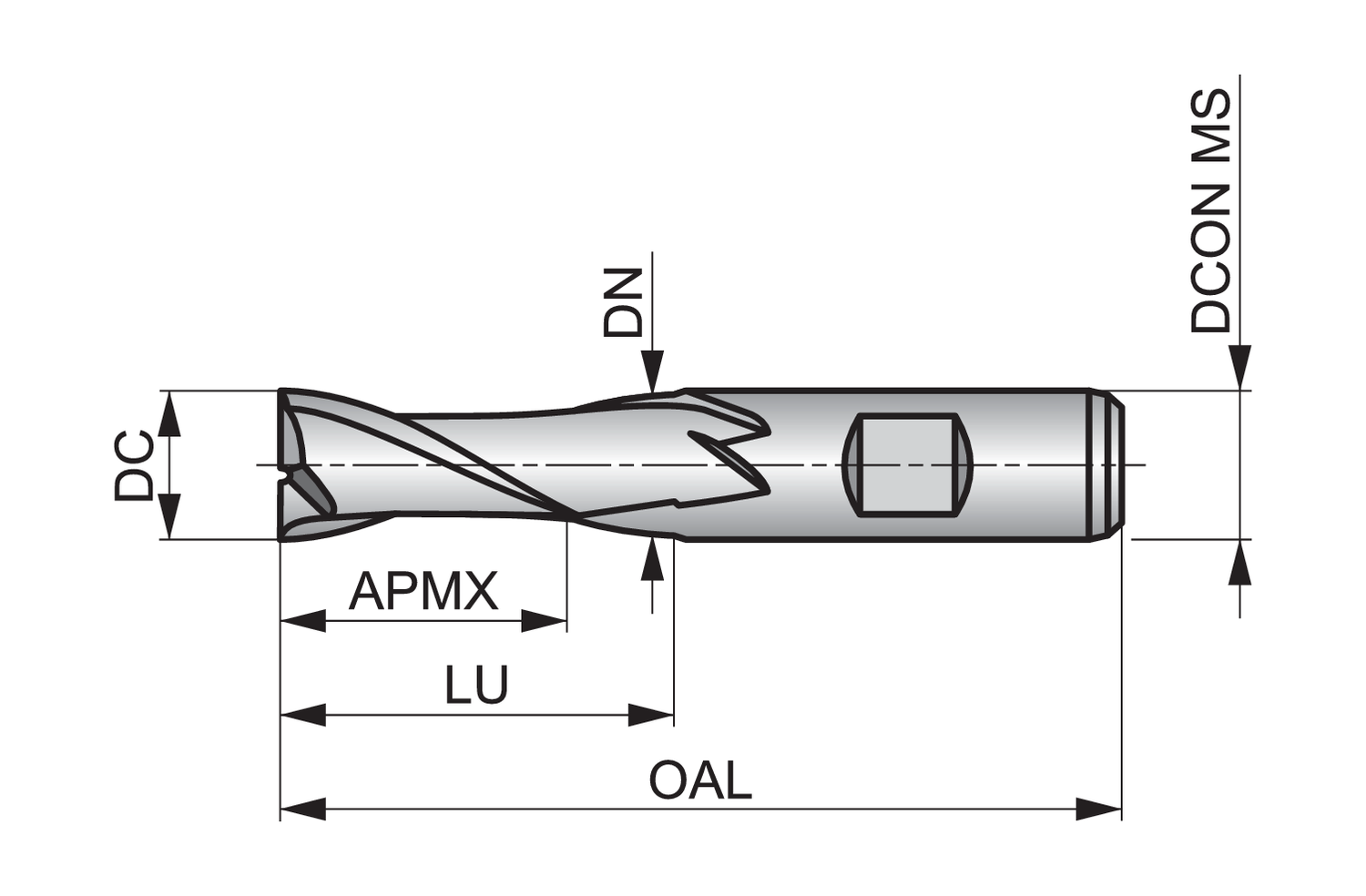

Connection diameter - inch (DCON MS)

0.7874

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cut length

Short

Cutting diameter - inch (DC)

0.8661

Cutting diameter - millimeter (DC)

Cutting diameter tolerance class (TCDC)

Depth of cut maximum - inch (APMX)

1.4961

Depth of cut maximum - millimeter (APMX)

EDP number

353677

Flute count (NOF)

Flute helix angle (FHA)

Material

HSS-E-PM

Material application

N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys

MID number

5984381

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Neck diameter - inch (DN)

0.7677

Neck diameter - millimeter (DN)

19.5

Ordering code ANSI

C12322.0

Overall length - inch (OAL)

4.0945

Overall length - millimeter (OAL)

104

Peripheral effective cutting edge count (ZEFP)

Radial rake angle (GAMF)

Shank

Weldon shank DIN 1835B

Usable Length - millimeter (LU)

53.5

C123 milling cutters have 2 flutes with a medium length which provides high rigidity for milling standard slots, whilst the accurate diameter makes them perfect for milling standard keyway slots to a P9 tolerance.

The powder metal High Speed cobalt used in manufacture gives increased performance coupled with a longer tool life.

C123 milling cutters have a bright finish which stops workpiece material from sticking to the cutting edges, so giving you a more accurate and cleaner finish.

They can be used for plunging, ramping and profile milling in cast iron, steels and stainless steels, making them very versatile
