Dormer C13520.0 5984631 slot drill, 20mm cutting diameter, 2-flute, Cobalt High Speed Steel (HSS-E), 30° helix angle, 12° radial rake, 38mm max depth of cut, 20mm shank with h6 tolerance. For non-ferrous metals and steel/cast steel. DORMER standard.
MODEL 5984631
$118.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

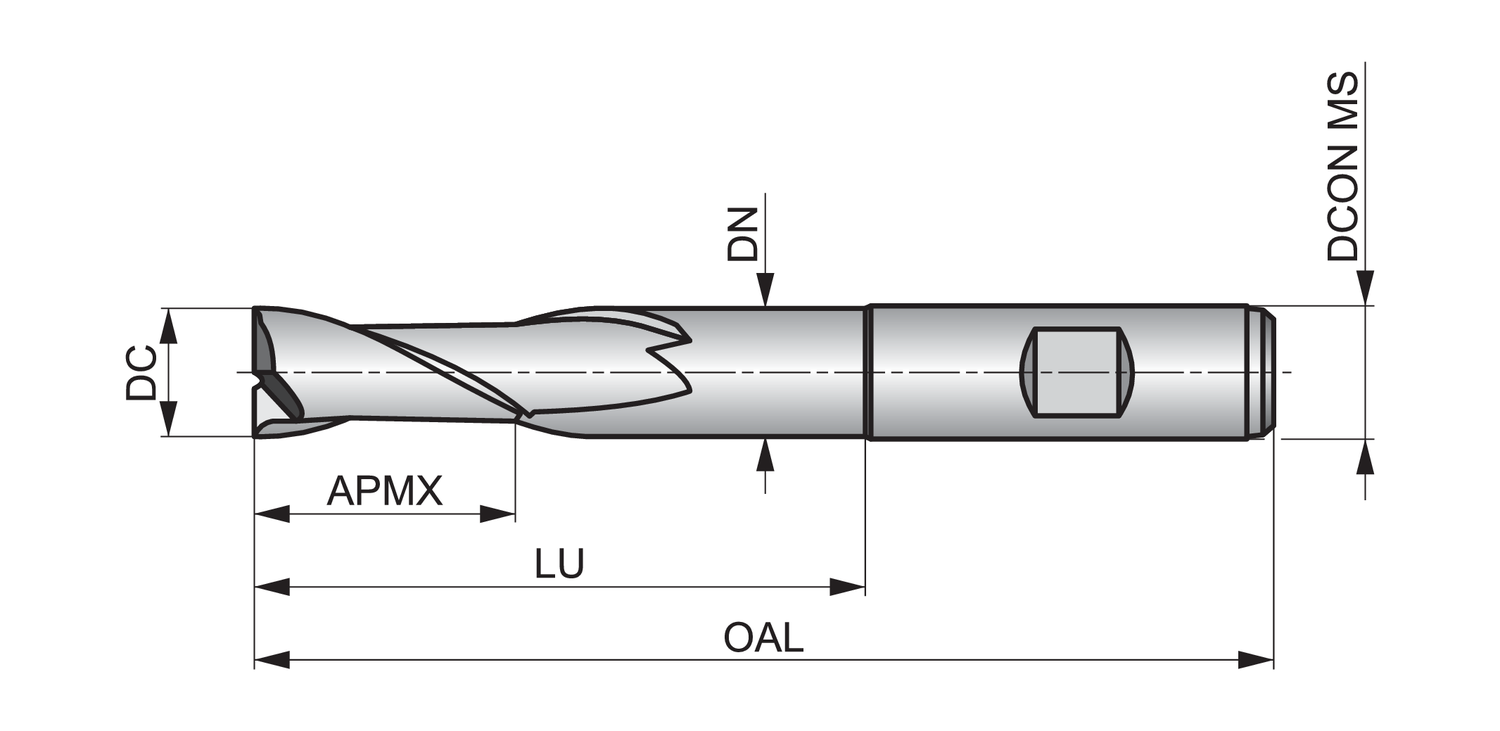

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Connection diameter tolerance machine side (TCDCONMS)
h6
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
57605
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HSS-E
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5984631
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.7677
Neck diameter - millimeter (DN)
19.5
Ordering code ANSI
C13520.0
Overall length - inch (OAL)
5.5512
Overall length - millimeter (OAL)
141
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
90.5
C135 milling cutters designed with a long reach 2 flute have good rigidity which provides increased strength and reduced vibration in difficult to reach areas.
They are manufactured from High Speed-E so you will get longer tool life with improved performance.
The tools have a bright finish which prevents workpiece material from sticking to the cutting edges so you get a cleaner, more accurate finish.
The versatility of the C135 speaks for itself as it can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron.
The accurate diameter of C135 milling cutters means they will mill standard keyway slots to a P9 tolerance
