Dormer C15910.0 5984088 Slot Drill W 844 K 10.00 mm
MODEL 5984088
$38.46 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
Bright

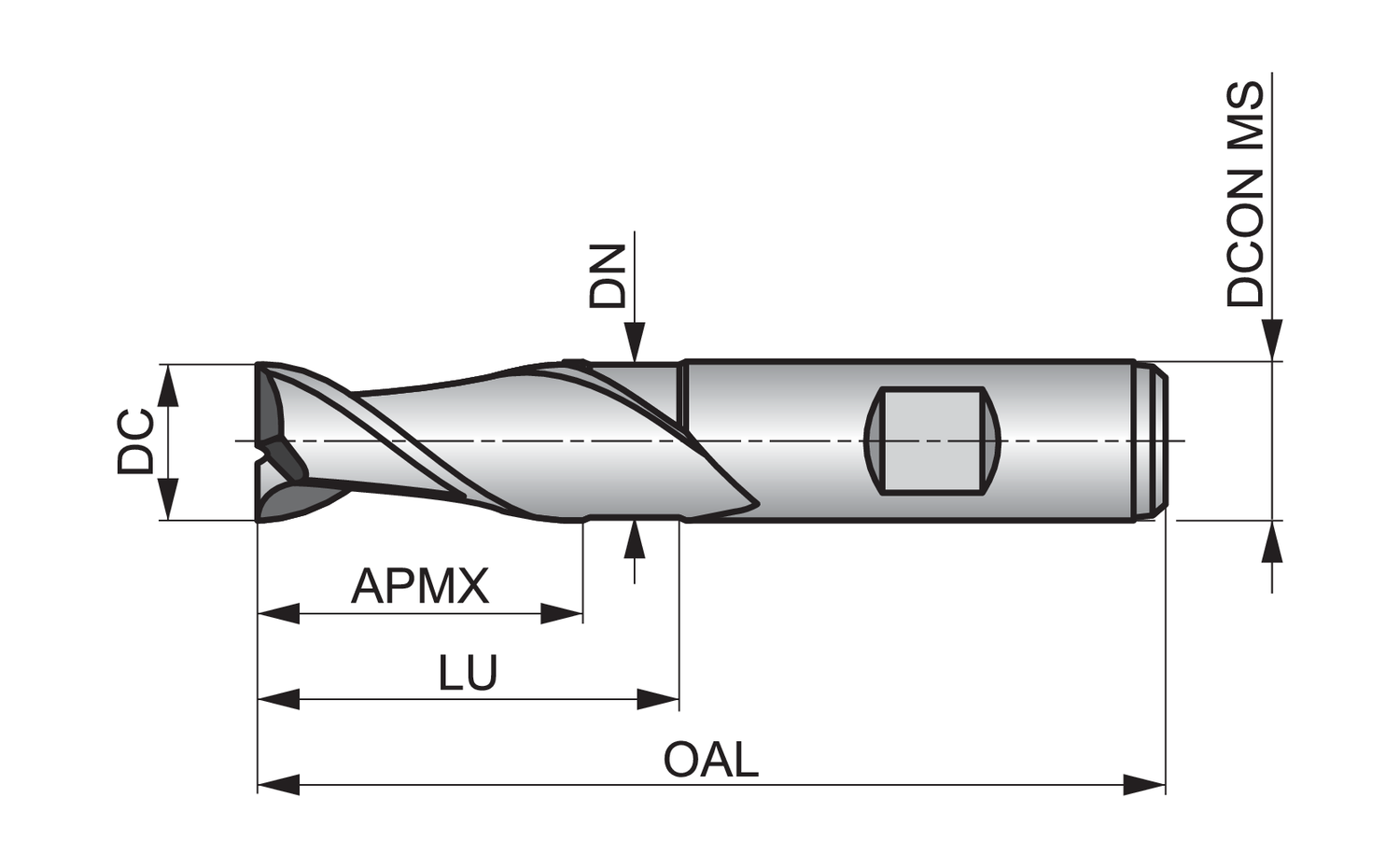

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Connection diameter tolerance machine side (TCDCONMS)
h6
Cut length
Short
Cutting diameter - inch (DC)
0.3937
Cutting diameter - millimeter (DC)
10
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
0.8661
Depth of cut maximum - millimeter (APMX)
22
EDP number
59487
Flute count (NOF)
2
Flute helix angle (FHA)
40
Material
HSS-E
Material application
N - Non-ferrous metals
MID number
5984088
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Ordering code ANSI
C15910.0
Overall length - inch (OAL)
2.8346
Overall length - millimeter (OAL)
72
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
20
Shank
Weldon shank DIN 1835B
C159 2 flute milling cutters from Dormer have a 40 degree helix, a design feature which gives high performance when machining softer materials on CNC machines.
They are designed specifically for milling in non-ferrous materials such as aluminium and are manufactured from powder metal High Speed cobalt to give you improved performance and longer tool life.
With a bright finish to prevent workpiece material from sticking to the cutting edges of the tool, you can be sure C159 milling cutters will give you a clean, accurate finish
