Image for Illustration purposes only. Actual product may vary
Dormer C24611.0 0356166 End Mill 11.00 mm
MODEL C24611.0
This vendor has a minimum order quantity of 2. Order minimum ($) may be applied. Add desired QTY to cart and proceed to checkout to view minimum
$63.86 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Orders over $500 qualify for a Free Gift
Brand Minimum Order Quantity: 2
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating property (CTP)
1

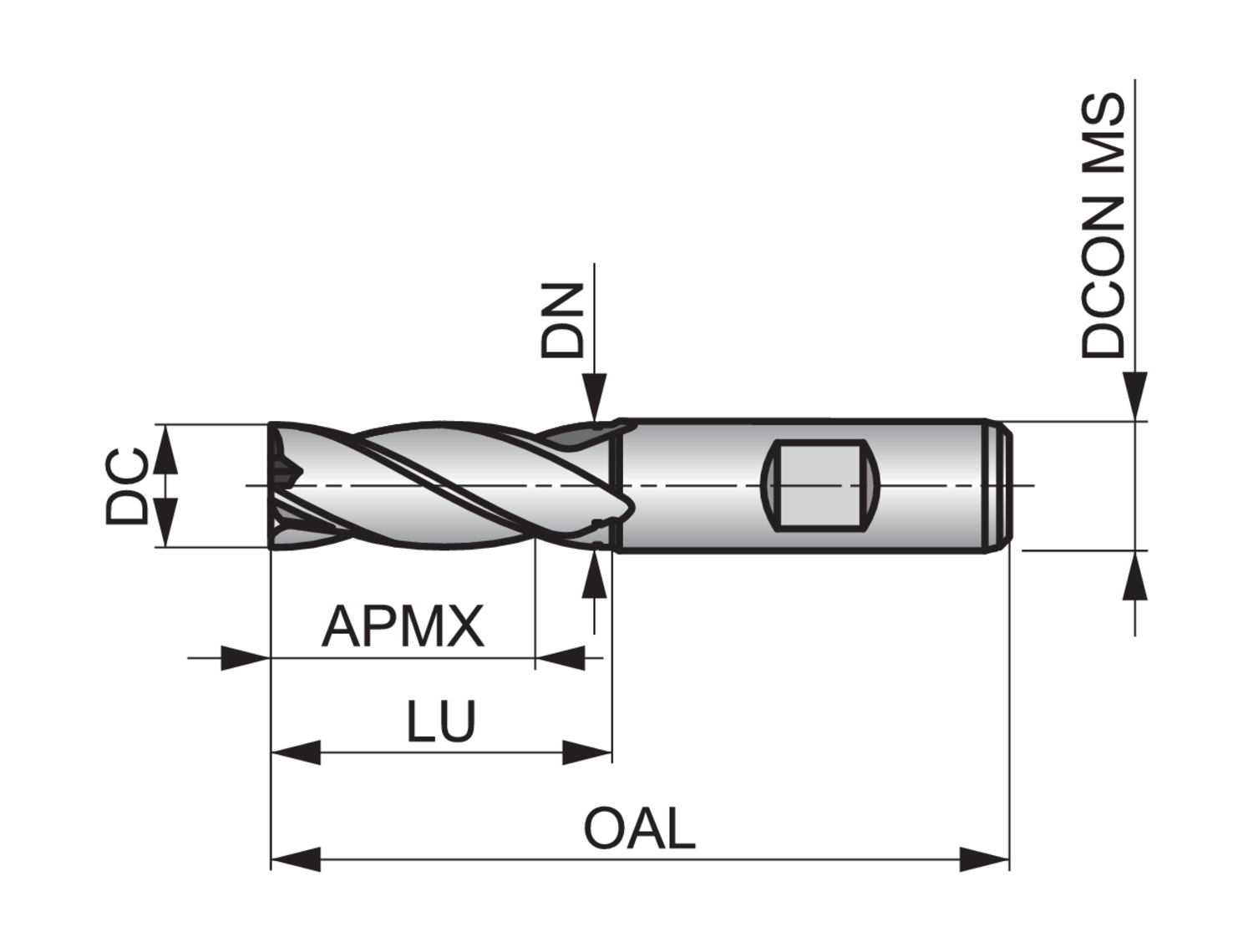

Connection diameter - millimeter (DCON MS)
12
Depth of cut maximum - millimeter (APMX)
22
EDP number
356166
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5984153
Ordering code ANSI
C24611.0
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
12
C246 4-flute milling cutters from Dormer can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron.
They are manufactured from powder metal High Speed cobalt which means you will get great performance coupled with a longer tool life, and have a robust design which means they are equally suitable for both slotting and profile milling.
The titanium carbo nitride coating further increases the life of the cutter and improves performance when milling hard and abrasive materials.
The high rigidity as a result of the medium length flute design is ideal for general profile milling applications
