Dormer C2731/2 5984566 End Mill N 844 L 1/2 inch
MODEL 5984566
$77.59 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 L
Coating
Bright

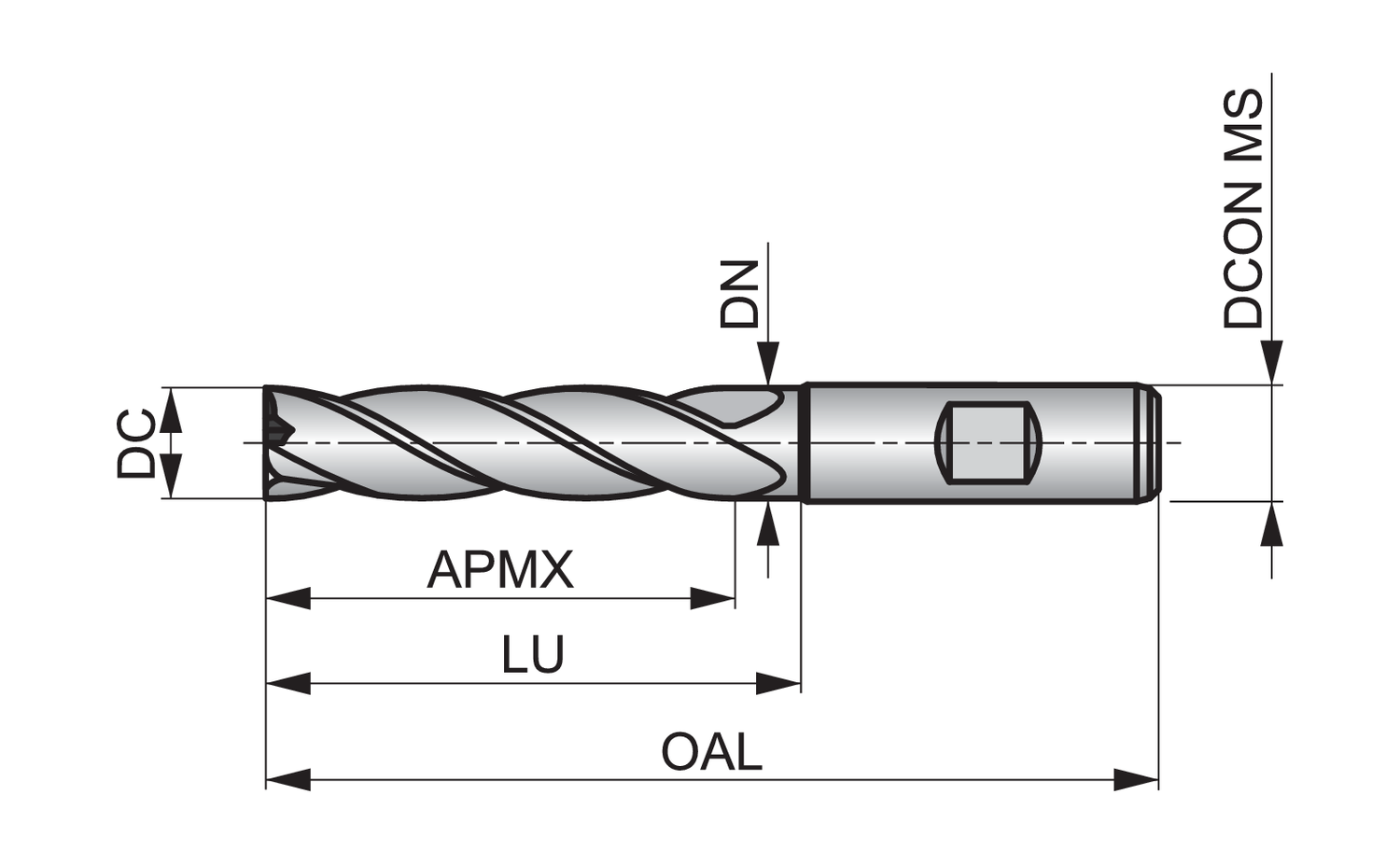

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Cut length
Long
Cutting diameter - fractional inch (DC)
1/2
Cutting diameter - inch (DC)
0.5
Cutting diameter - millimeter (DC)
12.7
Cutting diameter tolerance class (TCDC)
k10
Depth of cut maximum - inch (APMX)
2.0866
Depth of cut maximum - millimeter (APMX)
53
EDP number
640302
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5984566
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.4528
Neck diameter - millimeter (DN)
11.5
Ordering code ANSI
C2731/2
Overall length - inch (OAL)
4.3307
Overall length - millimeter (OAL)
110
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
64.5
With a long series flute design which provides high rigidity for finishing deep profiles, C273 4-flute milling cutters are suitable for ramping, plunging and profile milling in steels, cast iron and stainless steels.
They are manufactured from powder metal High Speed cobalt for great performance and long tool life, and have a bright finish which prevents workpiece material from sticking to the cutting edges of the tool so you get a more accurate and cleaner finish.
C273 milling cutters are suitable for profile milling on CNC machines
