Dormer C4138.0 5984419 Roughing End Mill 8.00 mm
MODEL 5984419
$62.52 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
TiCN
Coating property (CTP)
1

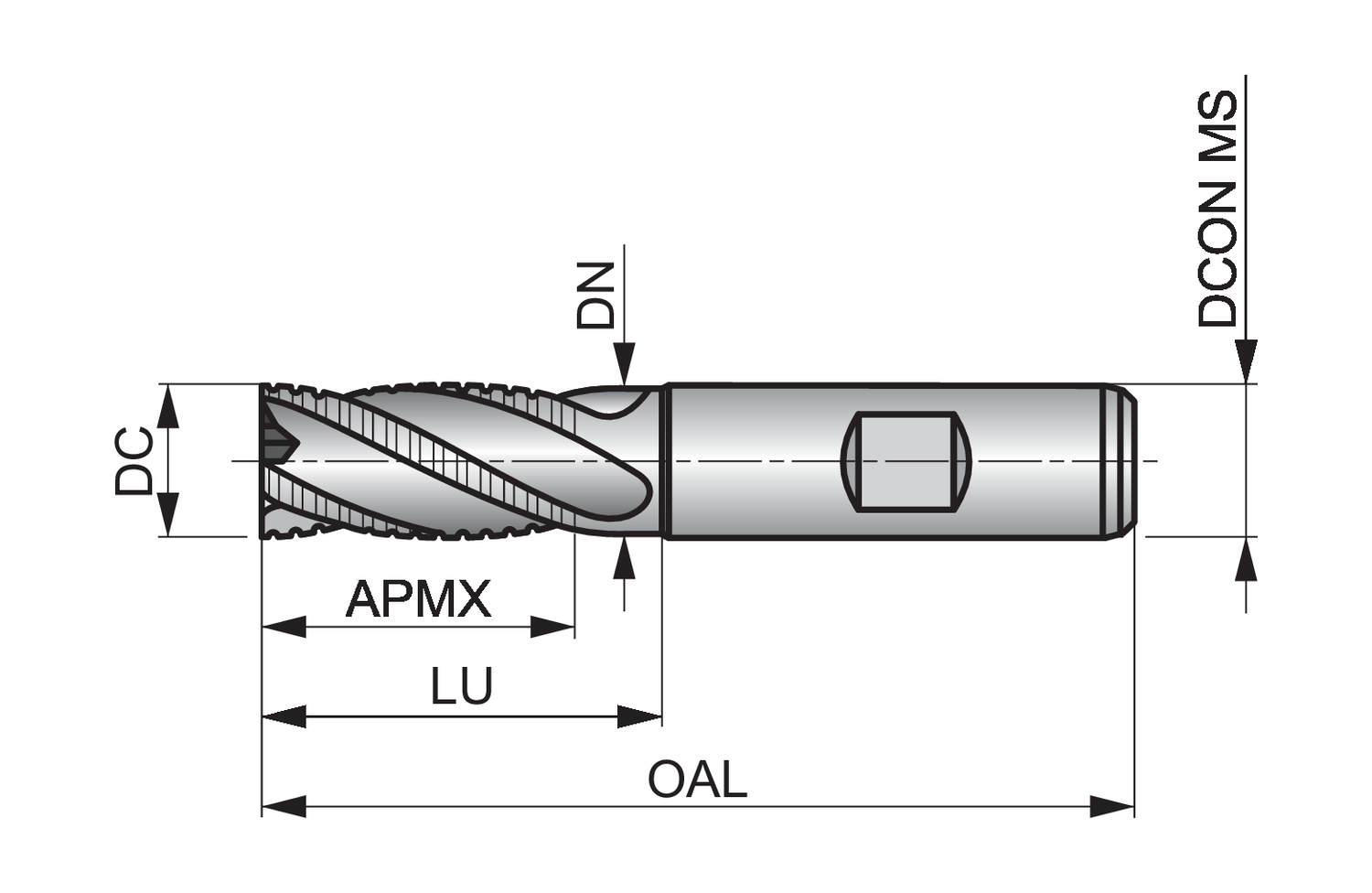

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Cut length
Short
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
Cutting diameter tolerance class (TCDC)
k12
Depth of cut maximum - inch (APMX)
0.748
Depth of cut maximum - millimeter (APMX)
19
EDP number
69103
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HSS-E
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5984419
Mill Profile
NF - Coarse Pitch Flat Profile Chipbreaker
Ordering code ANSI
C4138.0
Overall length - inch (OAL)
2.7165
Overall length - millimeter (OAL)
69
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
C413 4-flute versatile milling cutters from Dormer can be used for roughing when plunging, ramping and profile milling in stainless steels, cast iron and steels.
They have a medium length flute design with NF profile – with great chip breaking for efficient roughing applications, whilst the 30 degree helix reduces vibration and improves performance when used in CNC machines.
C413 milling cutters are manufactured from High Speed cobalt for great performance and long tool life, which is further enhanced by the titanium carbo nitride coating, which also improves performance when threading hard and abrasive materials
